VACUUBRAND - MD 1C Dry Chemistry Diaphragm Pump

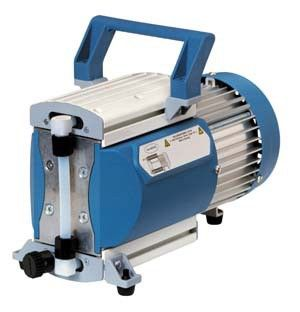

MD1C Oil-Free Diaphragm Vacuum Pump
Active Questions & AnswersAsk a Question
There are no current Discussions
Vacuum Pumps Service ProvidersView All (13)
Documents & Manuals
There are no Documents or Manuals available.
Features of MD 1C Dry Chemistry Diaphragm Pump
Significantly Quieter Than Rotary Vane Pumps The MD1C oil-free vacuum pump is significantly quieter than rotary vane pumps, waterjet aspirators, and competitive diaphragm pumps. Operation produces decibel levels comparable to a quiet, face-to-face conversation.
Perform More Work VACUUBRAND pumps are engineered for performance, with flowrates as much as 40% higher at working vacuum level than competitive pumps with similar free air capacity ratings. Excellent Corrosion Resistance Like all VACUUBRAND chemistry design diaphragm vacuum pumps, the MD1C vacuum pump has flowpaths constructed of materials with excellent corrosion resistance, such as PTFE heads and diaphragms. It is also equipped with a gas ballast to provide consistent pump performance with condensed vapors.
VACUUBRAND chemistry-design diaphragm pumps eliminate the misting, handling, and disposal of contaminated oil associated with rotary vane pumps. Typical service intervals are from 10,000-15,000 hours - years in many applications!
General Specifications
| Airflow (CFM) | 0.8 CFM /9 cfm |
| Depth | 316 mm |
| Height | 175 mm |
| Max. Pumping Speed | 1.3 m3/hr /1.5 m3/hr |
| Width | 143 mm |
| Exhaust Connection | Hose nozzle DN 8 mm |
| Maximum Temperature | 40 °C |
| Inlet Connection | Hose nozzle DN 10 mm |
| Noise Level | 45 dB |
| Vacuum Pump Type | Diaphragm Pump |
| Weight | 6.9 kg |
| Ultimate Vacuum | 2 mbar /1.5 mbar |
| Vacuum Monitoring and Control | No Control |
Additional Specifications
Controller(s): No

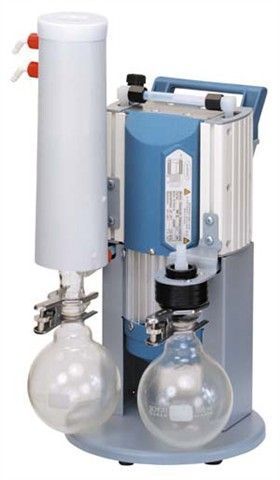

Solvent Recovery: No (available on MD1C+AK+EK)
