Agilent Technologies - Encore Multispan
Manufactured by Agilent Technologies
Agilent’s Encore Multispan System combines innovative multispan pipetting ability, with the off-deck reach of a...
Agilent’s Encore Multispan System combines innovative multispan pipetting ability, with the off-deck reach of a built-in robotic arm and intelligent software control for game changing workflow automation, productivity and throughput. The robotic arm reaches up to 53 cm (21 in) off deck making it easy to automate entire workflows – both up and down stream. The flexible multispan pipetting with independent X and Y axis motion reaches more samples across the deck at any given time. The intelligent software enables researchers to visualize and optimize their protocols prior to any instrument movement. The ability to integrate more of your workflow with a single platform means less complexity and the highest levels of efficiency and throughput for your laboratory.
Active Questions & AnswersAsk a Question
There are no current Discussions
Liquid Handling Service ProvidersView All (10)
Documents & ManualsView All Documents
Features of Encore Multispan

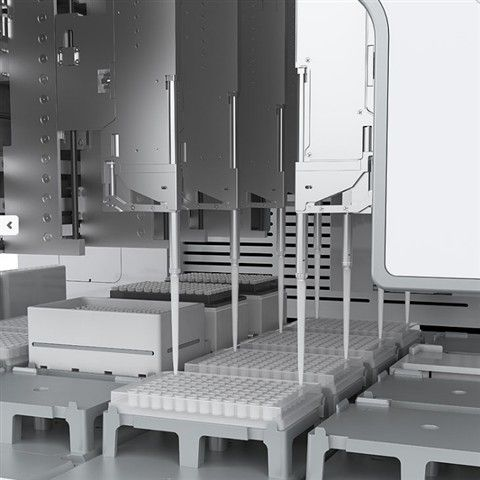

- Flexible multispan pipetting – Eight pipettors (with variable spacing) mounted on dual gantries deliver independent X and Y-axis motion to reach more samples across the deck and enables transfers between tubes and plates

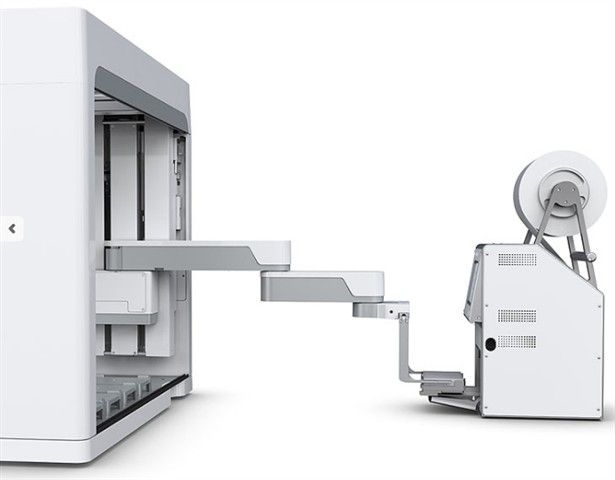

- Built-in robotic arm with labware gripper – Reaches up to 53 cm (21 in) off deck for end-to-end automated solutions and more walkway time
- Intelligent software – Plan, visualize and optimize your protocols using 3D simulator and easy-to-use drag and drop interface
- More on-deck positions – A combination of 32 deck positions, 24 pipette accessible plus 8 for labware storage, enable complex multistep tasks
- Factory-calibrated pipettors – with pretaught deck positions, streamline the start up process
- Wide range of applications – including genomics, proteomics, cell biology, screening, ADME/Tox and more
General Specifications
| Depth | 32 in |
| Maximum Dispensing Volume | 1000 μL |
| Height | 28.9 in |
| Width | 56 in |
| Power Requirements | 100-240 VAC, 50/60 Hz, 10 A mains |
| Peak Power | 1000 VA |
| Weight | 380 lbs |
| Dispensing Type | Multi-channel |
