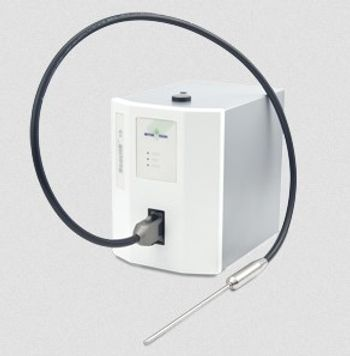

METTLER TOLEDO - ReactIR 15
Manufactured by METTLER TOLEDO
Fourier Transform Infrared (FTIR) reaction monitoring for organic chemists in R&D of chemical compounds, whether skilled in spectroscopy or not.
ReactIR 15 is a Fourier Transform Infrared spectroscopy (FTIR) for in situ reaction monitoring and chemistry understanding. Progressive technology allows ReactIR to be used effortlessly by any chemist, whether skilled in spectroscopy or not. Sampling technology options ensure optimal chemical information from every reaction.
Active Questions & AnswersAsk a Question
There are no current Discussions
Need Equipment Support?
Documents & ManualsView All Documents
Features of ReactIR 15
- Sealed Interferometer (no purge required)
- MCT detector or Stirling Engine (SE) MCT detector for maximum sensitivity
- Integrated DS sampling connection (no alignment required)
- Integrated temperature sensor (trend reaction temperature with spectral data)
- Status LEDs (Scan, MCT OK and Power)
- USB communication with external computer
General Specifications
| Depth | 249 mm |
| Height | 274 mm |
| Width | 180 mm |
| Power Requirements | 100-240 VAC/ 50/60 Hz (1.2A) |
| Weight | 20 lbs |
| Part Number | 14000003 |
Additional Specifications
For Use In:
Laboratory
Software:
ConcIRT Pro; iC IR; iC Kinetics; iC Quant
Detector:
LN2 NCT; SE MCT
Optical Range (Base Unit):
4000-650 cm-1
Purge Requirement:
No
Communication:
USB 2.0
Resolution (2):
4 cm-1 maximum
Operating Range (Temp.):
19.0 °C - 25.0 °C
Probe Optical Window:
2500-650 cm-1 maximum (Fiber Probe)
Wetted Materials:
Alloy C22; Diamond or Silicon; Gold
Probe Pressure (Maximum):
69bar (6.3 & 9.5mm Fiber Probe); 107bar (Sentinel)
Probe Temperature (Maximum):
180°C (Fiber Probe); 200°C (Sentinel)
Safety Certification:
EMC Directive 2004/109/EC, Low Voltage Directive 2006/95/IEC
Probe pH Range:
1-10 (Silicon); 1-14 (Diamond)
