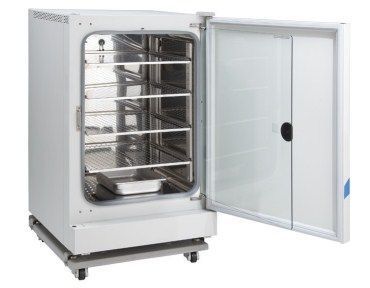

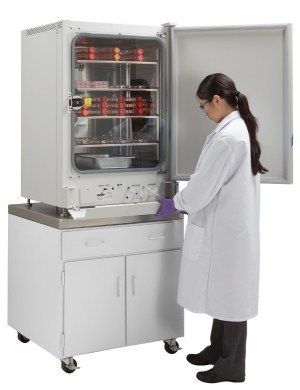

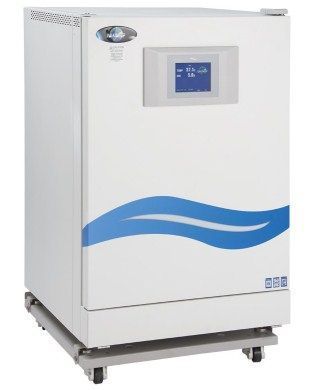

NuAire - In-VitroCell ES NU-5800

Manufactured by  NuAire
Follow this Equipment

Direct Heat CO2 Incubator

The In-VitroCell ES NU-5800 Direct Heat Laboratory CO2 Incubator is designed to provide a controlled in-vitro environment by providing the desired functionality needed to encourage cell culture growth for research at or near body temperature.
Active Questions & AnswersAsk a Question

Recent Questions & Answers

avatar placemark

Asked bygaurisrivas9293

air pump replacement
View All Questions & Answers (1)

CO2 Incubator Service ProvidersView All (28)

Request Support
Features of In-VitroCell ES NU-5800
  • NuTouch Electronic Control System
  • 100% Stainless Steel Coved Interior Chamber
  • Dual Temperature Sensor Probes
  • Infrared (IR) CO2 Sensor
  • Dual Sterilziation Cycles (NU-5810, 5820, 5830, 5840)
  • Humidity Control System (NU-5820, 5840)
  • O2 Control System (NU-5830, 5840)
  • Four (4) Stainless Steel Shelves
  • Eight (8) Stainless Steel Shelf Guides
  • Four (4) Wall Brackets
  • Field Reversible Outter Door
  • Remote Alarm Output Contacts
  • 4 to 20 mA Analog Output RS-485 Communication USB Port
  • CO2 Sample Port
  • Adjustable Leg Levelers
  • Access Port and Plug with Breather Holes
  • One (1) Water Pan
  • One (1) 6.5 ft. / 2 m Electrical Cord
General Specifications
CO2 Incubator TypeDirect Heat
Depth 27 in
Height40 in
Internal Depth 20 in
Internal Height 28.5 in
Width 26.5 in
Internal Width 21 in
Chamber Volume200 L
CO2 SensorInfrared (IR)
CO2 Range0.1 to 20 %
Weight235 lbs
Maximum Shelf Load20 lbs per shelf
Shelf Dimensions19 ¼ x 18 ¼ (WxD)
Incubator Orientation Floor Standing
Additional Specifications

Utility Connections
Gas Connections:
0.25" (6.3 mm) Tubing
Gas Input Pressure:
20 PSIG (1.4 BAR) Input Pressure Maximum. Two Stage Gas Regulator Required

Electrical Requirements
Startup Power:
625 watts
Running Power:
250 watts
Heat Rejected:
14 BTU / minute

Temperature Control System
Sensor Type:
Precision Integrated Circuit
Range:
5°C to 55°C (5°C aboveambient to 30°C max. ambient)
Accuracy:
±0.1°C
Uniformity:
± 0.3°C at 37°C
Recovery:
0.12°C/minute Average
Display Resolution:
0.1°C

CO2 Control System
Accuracy:
± 0.1%
Recovery:
Up to 5% (-0.50% / +0.20%) in 5 minutes average.
Display Resolution:
± 0.1%

Warranty
2 Year Parts and Labor (US & CA)
3 Year Parts (Intl)

Quality Asssurance:
UL, UL-C, CE, Energy Saver, RoHS, Constant Contamination Control, Critical Cleaning Components
