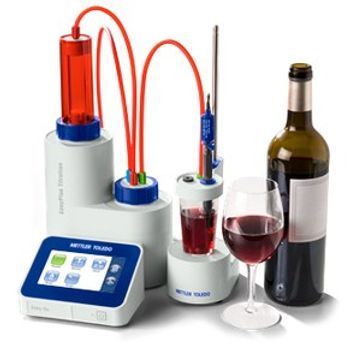

The Redox Titrator
The EasyOx Titrator speeds up and simplifies automated reduction and oxidation (redox) titrations. The simple ‘App’ style user interface reduces training time while increasing work speed and simplicity. iTitrate Intelligence’s guided set-up assists in method programming to ensure samples are tested consistently, regardless of operator, and with minimal effort. Eliminate manual calculations and documentation with a printer or EasyDirect™ Titration PC Software.
Active Questions & AnswersAsk a Question
There are no current Discussions
Titrators Service ProvidersView All (5)
Documents & Manuals
There are no Documents or Manuals available.
Features of Easy Ox
Easy Redox Titrations
Everything you need for inflection-point Redox titrations. This versatile titrator has a platinum ring redox-sensing electrode making it the ideal instrument to meet the needs of food, beverage, galvanic and even environmental analyses.
The Easy Ox Titrator’s platinum ring electrode makes it ideal for the following applications and many more:
- Vitamin C determination in food and beverages.
- Peroxide value of cooking oils.
- Reducing sugar content in wines and juices.
- Hydrogen peroxide content of cleaning and plating solutions.
General Specifications
| Depth | 220 mm |
| mV Range | 1 to 2000 |
| Height | 350 mm |
| mV Resolution | 0.1 mV |
| Width | 170 mm |
| Power Requirements | 24 VDC / 1.25 A, 100 – 240 V ±10%, 50 / 60 Hz |
| Weight | 1.9 kg |
| Titrator Type | Redox |
Additional Specifications
[u]mV sensor input[/u]
Measuring range: ± 2000 mV
[u]Polarized sensor input[/u]
Current source redox ipol: 0 – 5 ΜA
Resolution: ± 0.1 ΜA
[u]Environment[/u]
Ambient temperature: 5 °C – 40 °C
Atmospheric humidity: Max. 80% at 31 °C
[u]Control and display[/u]
Touchscreen: 4.3 inch, 480 x 272 pixel RGB
Communication:
[i]USB-A:[/i] USB full / low speed
[i]USB-B:[/i] USB full / low speed
[u]Application*[/u]
Repeatability: 0.5% RDS
Titration type: Direct, back compensated, blank compensated
*Depends on the environment and handling
