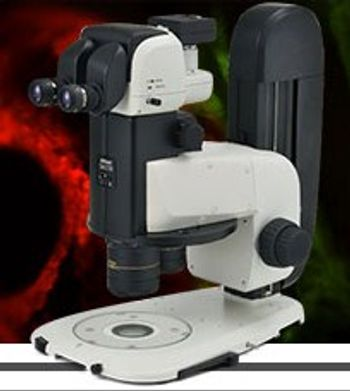

Nikon - SMZ18

Manufactured by  Nikon
Follow this Equipment

Intelligent yet affordable manual zoom stereomicroscope provides brilliant images and unparalleled uniformity in fluorescence intensity.

Nikon's SMZ18 stereomicroscope combines macro and micro imaging in one manual instrument for convenient, affordable viewing and manipulation of single cells to whole organisms. A high-performance fly-eye lens provides crystal-clear fluorescent images, with uniform brightness across the entire field of view. Using enhanced epi-fluorescence technology, the SMZ18 is better able to detect excitation light than conventional fluorescent stereomicroscopes, for improved S/N ratios and bright, high-contrast images, even in the low magnification range. Integrated intelligence allows SMZ18 to save imaging parameters along with the captured image as a convenient data file.

* Available July 1, 2013
Active Questions & AnswersAsk a Question

There are no current Discussions

Need Equipment Support?

Request Support
Features of SMZ18

  • Brightest Epi-fluorescence Imaging
  • Flexible Architecture Allows Full Customization
  • Improved Signal-to-Noise Ratios
  • Advanced Digital Imaging Capabilities
  • Wide Range of Available Accessories
General Specifications
Microscope TypeStereo
Additional Specifications

[u]Zooming Body[/u]
Optical System:
Parallel-optics type (zooming type), apochromatic optical system
Zoom:
Manual
Zoom Ratio:
18:1
Zoom Range:
0.75–13.5x
Aperture Diaphragm:
Zooming body built-in

[u]Objectives NA, WD (mm)[/u]
P2-SHR Plan Apo 2x:
0.3, 20 (with a correction ring for water 0 to 3mm in depth)
P2-SHR Plan Apo 1.6×:
0.24, 30
P2-SHR Plan Apo 1×:
0.15, 60
P2-SHR Plan Apo 0.5×:
0.075, 71
