New Brunswick Scientific - Innova Open Air

Manufactured by New Brunswick Scientific

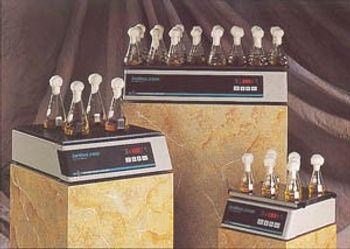

Innova 2000, 2100 and 2300 Series

For shaking in ambient conditions: on the bench, in an incubator or in a warm or cold room, the Innova Platform Shakers are the instrument of choice. Six ruggedly-built models provide reliable, continuous-duty shaking of test tubes and flasks to 6 Liters.

Active Questions & AnswersAsk a Question

There are no current Discussions

Shakers Service ProvidersView All (14)

Request Support

Manuals & DocumentsFeaturesSpecifications

Documents & ManualsView All Documents

Features of Innova Open Air

Low Profile - Less than 6" (15 cm) Tall enables use of multiple shakers in an incubator or environmental chamber
Optional, Oversize Platforms and Stabilizer Kits Increase Capacity by 45%. Models 2050, 2150 and 2350 are factory-ready. Field conversion kits are also available to stabilize the shaker when increasing capacity of a Model 2000 to a 2050, 2100 to 2150, or 2300 to 2350.
Agitation 25 - 500 rpm, ±1 rpm
Optional Temperature/Speed Monitoring Kit with RTD sensor displays and records process values. Innova 2100 & 2300 Series only. Catalog No. M1190-9909.
Space-Efficient, Four-Tier Racking System is available to house up to eight Model 2300 shakers

General Specifications

There are no General Specifications available.

Additional Specifications

Electrical: 120V 50/60 Hz

Series Modals

New Brunswick Scientific - 2000

[+] View Model Specifications

New Brunswick Scientific - 2050

[+] View Model Specifications

New Brunswick Scientific - 2100

[+] View Model Specifications

New Brunswick Scientific - 2150

[+] View Model Specifications

New Brunswick Scientific - 2300

[+] View Model Specifications

New Brunswick Scientific - 2350

[+] View Model Specifications

Looking for New or Used Equipment?

Shop on LabX

Shop on Labx.com

Depth	14.5 in
Height	5.75 in
Plate Depth	11 in
Maximum Shaking Speed	500 rpm
Plate Width	13 in
Timer	Programmable shaking periods from 0.1 hr. to 99.9 hrs. Triggers audible alarm and energizes status light at end of period. Can be deactivated for continuous operation.
Width	14 in
Power Requirements	120V 50/60 Hz; 220/230V 50/60 Hz; 240V 50/60Hz; 100V 50/60 Hz, 35 VA
Orbital Diameter	0.75 in
Weight	33 lbs
Controls	Digital
Motor	Triple-eccentric counter-balanced drive in cast iron housing with 9 permanently lubricated ball bearings. Driven by solid-state brushless DC motor
Shaking Speed	25 to 500 rpm
Shaker Type	Orbital shaker
Additional Model Specifications	Orientation: Benchtop Max. capacity 250 mL flasks on a dedicated platform: 8 Max. capacity 250 mL flasks on a universal platform: 6 Max. capacity largest flask size on a universal platform: 4 x 500 mL Display: Digital LED electronic display in 1 rpm increments. Character height: 9/16" (1.4 cm) Alarms, Audible and Visible: Indicate when speed deviates more than 5 rpm from setpoint and when timer operation has expired. Audible alarm may be muted. Setpoint Retention: All setpoints and operating status are retained by non-volatile memory. Automatic restart after power is restored (indicated by flashing display). LED Display: Indicates speed in increments of 1 rpm, running time in 0.1 hrs., and alarm conditions. Character height: 9/16" (1.4 cm)

Depth	14.5 in
Height	5.75 in
Plate Depth	12 in
Maximum Shaking Speed	500 rpm
Plate Width	16 in
Timer	Programmable shaking periods from 0.1 hr. to 99.9 hrs. Triggers audible alarm and energizes status light at end of period. Can be deactivated for continuous operation.
Width	17 in
Power Requirements	120V 50/60 Hz; 220/230V 50/60 Hz; 240V 50/60Hz; 100V 50/60 Hz, 35 VA
Orbital Diameter	0.75 in
Weight	43 lbs
Controls	Digital
Motor	Triple-eccentric counter-balanced drive in cast iron housing with 9 permanently lubricated ball bearings. Driven by solid-state brushless DC motor
Shaking Speed	25 to 500 rpm
Shaker Type	Orbital shaker
Additional Model Specifications	Orientation: Benchtop Max. capacity 250 mL flasks on a dedicated platform: 12 Max. capacity 250 mL flasks on a universal platform: 10 Max. capacity largest flask size on a universal platform: 8 x 500 mL Display: Digital LED electronic display in 1 rpm increments. Character height: 9/16" (1.4 cm) Alarms, Audible and Visible: Indicate when speed deviates more than 5 rpm from setpoint and when timer operation has expired. Audible alarm may be muted. Setpoint Retention: All setpoints and operating status are retained by non-volatile memory. Automatic restart after power is restored (indicated by flashing display). LED Display: Indicates speed in increments of 1 rpm, running time in 0.1 hrs., and alarm conditions. Character height: 9/16" (1.4 cm)

Depth	21.9 in
Height	6.4 in
Plate Depth	18 in
Maximum Shaking Speed	500 rpm
Plate Width	18 in
Timer	Programmable shaking periods from 0.1 hr. to 99.9 hrs. Triggers audible alarm and energizes status light at end of period. Can be deactivated for continuous operation.
Width	19 in
Power Requirements	120V 50/60 Hz; 220/230V 50/60 Hz; 240V 50/60Hz; 100V 50/60 Hz, 80 VA
Orbital Diameter	0.75 in
Weight	120 lbs
Controls	Digital
Motor	Triple-eccentric counter-balanced drive in cast iron housing with 9 permanently lubricated ball bearings. Driven by solid-state brushless DC motor
Shaking Speed	25 to 500 rpm
Shaker Type	Orbital shaker
Additional Model Specifications	Orientation: Benchtop Max. capacity 250 mL flasks on a dedicated platform: 25 Max. capacity 250 mL flasks on a universal platform: 18 Max. capacity largest flask size on a universal platform: 2 x 6 L Display: Digital LED electronic display in 1 rpm increments. Character height: 9/16" (1.4 cm) Alarms, Audible and Visible: Indicate when speed deviates more than 5 rpm from setpoint and when timer operation has expired. Audible alarm may be muted. Setpoint Retention: All setpoints and operating status are retained by non-volatile memory. Automatic restart after power is restored (indicated by flashing display). LED Display: Indicates speed in increments of 1 rpm, running time in 0.1 hrs., and alarm conditions. Character height: 9/16" (1.4 cm)

Depth	23.3 in
Height	6.4 in
Plate Depth	18 in
Maximum Shaking Speed	500 rpm
Plate Width	24 in
Timer	Programmable shaking periods from 0.1 hr. to 99.9 hrs. Triggers audible alarm and energizes status light at end of period. Can be deactivated for continuous operation.
Width	24 in
Power Requirements	120V 50/60 Hz; 220/230V 50/60 Hz; 240V 50/60Hz; 100V 50/60 Hz, 80 VA
Weight	125 lbs
Controls	Digital
Motor	Triple-eccentric counter-balanced drive in cast iron housing with 9 permanently lubricated ball bearings. Driven by solid-state brushless DC motor
Shaking Speed	25 to 500 rpm
Shaker Type	Orbital shaker
Additional Model Specifications	Orientation: Benchtop Max. capacity 250 mL flasks on a dedicated platform: 35 Max. capacity 250 mL flasks on a universal platform: 24 Max. capacity largest flask size on a universal platform: 3 x 6 L Display: Digital LED electronic display in 1 rpm increments. Character height: 9/16" (1.4 cm) Alarms, Audible and Visible: Indicate when speed deviates more than 5 rpm from setpoint and when timer operation has expired. Audible alarm may be muted. Setpoint Retention: All setpoints and operating status are retained by non-volatile memory. Automatic restart after power is restored (indicated by flashing display). LED Display: Indicates speed in increments of 1 rpm, running time in 0.1 hrs., and alarm conditions. Character height: 9/16" (1.4 cm)

Depth	22.3 in
Height	6.4 in
Plate Depth	18 in
Maximum Shaking Speed	500 rpm
Plate Width	30 in
Timer	Programmable shaking periods from 0.1 hr. to 99.9 hrs. Triggers audible alarm and energizes status light at end of period. Can be deactivated for continuous operation.
Width	30 in
Power Requirements	120V 50/60 Hz; 220/230V 50/60 Hz; 240V 50/60Hz; 100V 50/60 Hz, 150 VA
Weight	45 lbs
Controls	Digital
Motor	Triple-eccentric counter-balanced drive in cast iron housing with 9 permanently lubricated ball bearings. Driven by solid-state brushless DC motor
Shaking Speed	25 to 500 rpm with 1
Shaker Type	Orbital shaker
Additional Model Specifications	Orbit: 1" or 2" Orientation: Benchtop Max. capacity 250 mL flasks on a dedicated platform: 40 Max. capacity 250 mL flasks on a universal platform: 30 Max. capacity largest flask size on a universal platform: 4 x 6 L Display: Digital LED electronic display in 1 rpm increments. Character height: 9/16" (1.4 cm) Alarms, Audible and Visible: Indicate when speed deviates more than 5 rpm from setpoint and when timer operation has expired. Audible alarm may be muted. Setpoint Retention: All setpoints and operating status are retained by non-volatile memory. Automatic restart after power is restored (indicated by flashing display). LED Display: Indicates speed in increments of 1 rpm, running time in 0.1 hrs., and alarm conditions. Character height: 9/16" (1.4 cm)
