Vanguard Pharmaceutical Machinery - VHG-G
Manufactured by Vanguard Pharmaceutical Machinery
No Documents
VHG-G High Shear Granulator is widely used in granulation process of pharmaceutical, food and feed industry because it is high efficient.
VHG-G High Shear Granulator is widely used in granulation process of pharmaceutical, food and feed industry because it is high efficient.
Active Questions & AnswersAsk a Question
There are no current Discussions
High Shear Granulators Service ProvidersView All (12)
Documents & Manuals
There are no Documents or Manuals available.
Features of VHG-G
The machine main tower is made by 304 or SUS 316 L into four sections
- Machine cabinet
- Mix system
- Mincing system
- Control system
General Specifications
There are no General Specifications available.
Additional Specifications
[list]
[*] Making rounder and stronger granules with high density
[*] Mixing and granulating in one step
[*] Automatic discharge
[*] Improved MZ8 shaped Mixer
[*] Compressed air seal and mixer and chopper.
[*] Save process time

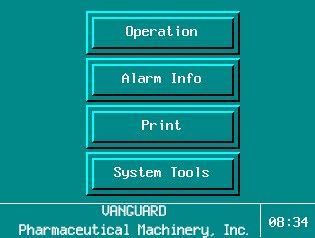

[*] Intelligent Control System
[/list]
Series Modals
Vanguard Pharmaceutical Machinery - VGH-G25
[+] View Model Specifications| Depth | 630 mm |
| Height | 1360 mm |
| Width | 1870 mm |
| Power Requirements | Mix Power 2.2 kW |
| Part Number | VHG-G25 |
| Additional Model Specifications | Total Volume:
25 L Working Volume: 7-20 L Container Dimensions: 360 mm Mix Speed: 70-700 rpm Chopper Speed: 280-2800 rpm |
Vanguard Pharmaceutical Machinery - VHG-G10
[+] View Model Specifications| Depth | 540 mm |
| Height | 1330 mm |
| Width | 1490 mm |
| Power Requirements | Mix Power 1.5 kW |
| Part Number | VHG-G10 |
| Additional Model Specifications | Total Volume:
10 L Working Volume: 3-8 L Container Dimensions: 262 mm Mix Speed: 100-1000 rpm Chopper Speed: 280-2800 rpm |
