HEMCO Corporation - UniFlow Dual Entry Fume Hoods

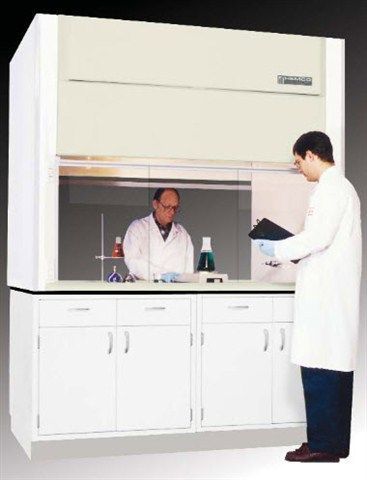

The unique design of the UniFlow LE Dual Entry Hood features safety glass sashes front and rear that allows observers a clear view
The unique design of the UniFlow LE Dual Entry Hood features safety glass sashes front and rear that allows observers a clear view as well as easy access to procedures. Ideal for schools and industrial where additional access is required. Fume Hood is equipped with a vapor-proof light fixture and switch. All electrical components and services are UL and CSA listed. Options include service fixtures, plumbing & electrical, airflow monitor, work surface, and base cabinet. Dual Entry Hoods are available in 4', 5', 6' and 8' widths and depths of 30", 36" or 48".
Active Questions & AnswersAsk a Question
There are no current Discussions
Fume Hoods Service ProvidersView All (9)
Documents & ManualsView All Documents
Features of UniFlow Dual Entry Fume Hoods
Available with
- Dual Entry Bypass Hood 30” Depth
- Dual Entry Bypass Hood 48” Depth.
- Vertical Moving Sash Option
General Specifications
There are no General Specifications available.
Series Modals
HEMCO Corporation - 48 Inch
[+] View Model Specifications| Depth | 30 in or 40 inch |
| Height | 59 in |
| Internal Depth | 24 in or 42 Inches |
| Width | 48 in |
| Internal Width | 37.75 in |
| Fume Hood Type | Variable Air Volume Ducted |
| Additional Model Specifications |
HEMCO Corporation - 60 Inch
[+] View Model Specifications| Depth | 30 in or 48 Inch |
| Height | 59 in |
| Internal Depth | 24 in 42 Inch |
| Width | 60 in |
| Internal Width | 49.625 in |
| Fume Hood Type | Variable Air Volume Ducted |
| Additional Model Specifications |
HEMCO Corporation - 72 Inch
[+] View Model Specifications| Depth | 30 in or 48 Inches |
| Height | 59 in |
| Internal Depth | 24 in or 42 Inches |
| Width | 72 in |
| Internal Width | 60.75 in |
| Fume Hood Type | Variable Air Volume Ducted |
| Additional Model Specifications |
HEMCO Corporation - 96 Inch
[+] View Model Specifications| Depth | 30 in or 48 Inchs |
| Height | 59 in |
| Internal Depth | 24 in or 42 Inches |
| Width | 96 in |
| Internal Width | 84.75 in |
| Fume Hood Type | Variable Air Volume Ducted |
| Additional Model Specifications |
