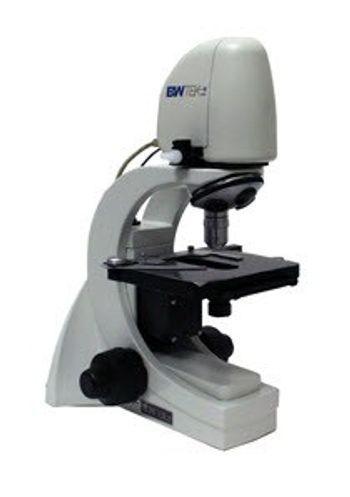

B&W Tek - BAC151A

Manufactured by  B&W Tek
Follow this Equipment

The BAC151A Raman video microscope sampling system allows you to convert any of our Raman systems into a Raman microscope.

The BAC151A Raman video microscope sampling system allows you to convert any of our Raman systems into a Raman microscope. It is compatible with our laboratory Raman probes and is designed to provide you with the highest level of flexibility and sampling utility. The BAC151A’s optional dual laser wavelength configuration allows you to use one port with two different input laser wavelengths. If you already have both a 532nm and a 785nm Raman system, you only need one BAC151A to use with both systems. The integrated camera facilitates precision Raman sampling through BWSpec™, which allows for laser beam tracking and image capturing. With tripod accessories available, the microscope head can be mounted to the tripod easily as well.
Active Questions & AnswersAsk a Question

There are no current Discussions

Raman Spectrophotometers Service ProvidersView All (3)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of BAC151A

  • Tripod Mounting Accessories with 1D, 2D, and 3D Adjustment
  • Compatible with All B&W Tek Raman Systems
  • Accepts Standard Microscope Objectives
  • Video Camera for Sampling Viewing
  • Coarse and Fine XYZ Adjustments
  • Dual Laser Wavelength Port
General Specifications
Weight4.8 kg
Additional Specifications

Wavelength:
Standard - 532nm 785nm Custom
Optional- Dual Wavelengths
Raman probe interface:
Ø3/8”
Power Input:
5VDC, 300mA
Ambient Temperature:
0-45°C
Humidity:
< 85% RH
Dimensions:
243mm x 208mm x 376mm (9.6” x 8.2” x 14.8”)
Nosepiece and Turret:
Quadruple nosepiece
Illumination:
Epi-illuminator, LED with condenser
Objective Lens:
long working distance / Infinite-corrected / Plain field achromatic
Focusing:
Coaxial fine and coarse adjustment with lock
Travel in Z direction:
24 mm
Resolution in Z direction:
1 Μm
XY Stage:
Double layer mechanical stage
XY Stage Size:
150mm x 140mm
Travel in X/Y direction:
75 mm (X), 50 mm (Y)
Resolution in X/Y direction:
2 Μm
CCD type:
Color, 1/4"
Active pixels:
768x494 (NTSC); 752x582 (PAL)
Viewer display:
720x480 max (NTSC); 720x576 max (PAL)
Interface:
USB 2.0 or 1.1
Gain control:
Automatic 36dB
Shutter speed:
21/60 – 1/100,000
Video image display:
Via BWSpec™ Software
Power consumption:
<1.3w through USB bus
