Cumberland - C Series
Manufactured by Cumberland

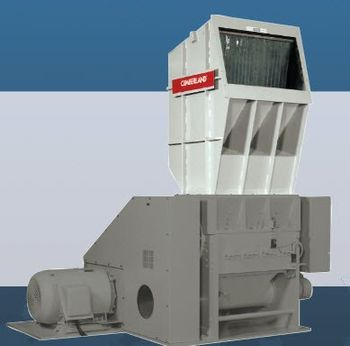

Cumberland's C Series is designed for heavy duty, high capacity granulation.
Cumberland's C Series is designed for heavy duty, high capacity granulation. Ideally suited for applications including heavy extruded purgings, sheet, pipe scrap, X-ray film, post consumer bailed bottles, film and fibers. The C Series comes in 40" (1000mm) and 56" (1400mm) widths, cutting circle diameter of 18", and horsepower options from 100 thru 200 hp.
The C Series also features include low-heat granulation made possible through its unique rotor and cutting chamber design that prevents polymer
"melt-down" and virtually eliminates "endplate smearing". This is accomplished by combining the "Chevron" rotor design with rotating end discs.
The C Series also features include low-heat granulation made possible through its unique rotor and cutting chamber design that prevents polymer
"melt-down" and virtually eliminates "endplate smearing". This is accomplished by combining the "Chevron" rotor design with rotating end discs.
Active Questions & AnswersAsk a Question
There are no current Discussions
High Shear Granulators Service ProvidersView All (12)
Documents & ManualsView All Documents
Features of C Series
- 3 blade open "Chevron" rotor with rotating end discs. * Conveyor feed, double wall sound absorbing hopper. * Bolted and dowelled cutting chamber. * Electro-mechanical screw jag hopper and screen cradle opening. * Easy access to both the rotor and screen areas, saving valuable time spent when changing colors or during routine maintenance.
General Specifications
There are no General Specifications available.
Series Modals
Cumberland - C1000
[+] View Model Specifications| Depth | 110.125 in |
| Height | 137.75 in |
| Width | 107.75 in |
| Weight | 14000 lbs |
| Additional Model Specifications |
Cumberland - C1400
[+] View Model Specifications| Depth | 110.125 in |
| Height | 137.75 in |
| Width | 123.75 in |
| Weight | 17000 lbs |
| Additional Model Specifications |
