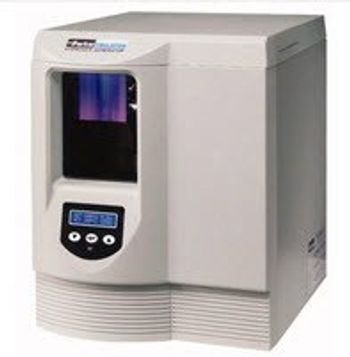

Parker - H2PEM Hydrogen Generator

Manufactured by  Parker
Follow this Equipment

This H2PEM hydrogen generator employs a Proton Exchange Membrane (PEM) cell to produce hydrogen on demand.

This H2PEM hydrogen generator employs a Proton Exchange Membrane (PEM) cell to produce hydrogen on demand. An economical alternative to high pressure gas cylinders, this unit should pay for itself in a year or two.
Active Questions & AnswersAsk a Question

There are no current Discussions

Hydrogen Service ProvidersView All (8)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of H2PEM Hydrogen Generator
  • Eliminates need for dangerous and expensive hydrogen gas cylinders
  • Compact; only requires one square foot of bench space
  • Can be used anywhere that an electrical supply is available
  • Just add deionized water for weeks of continuous operation
  • Easy-to-read display changes color to indicate when to add water
  • Only 100 mL of hydrogen is stored in the system at any time, and at low pressure
  • A built-in sensing circuit shuts the generator down if a hydrogen leak is detected
  • PEM technology eliminates the need for caustic liquids
General Specifications
Depth 17.95 in
Height17.12 in
Width 13.46 in
Weight40 lbs
Additional Specifications

Outlet Purity: 99.9995%

Outlet Pressure: 10-100 psig

Outlet Fitting:

  • 1/8 in. compression
  • H2PEM-100, 110/230 volt, output flow, 0 - 100 cc/min
  • H2PEM-100, 110/230 volt, output flow, 0 - 100 cc/min
  • H2PEM-260, 110/230 volt, output flow, 0 - 260 cc/min
  • H2PEM-510, 110/230 volt, output flow, 0 - 510 cc/min
