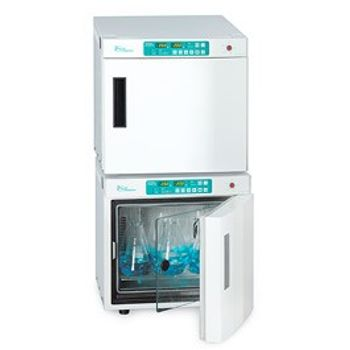

Jeio Tech - ILP-02
Manufactured by Jeio Tech
Compact, Lightweight with exclusive incubating performance for valuable tests
Compact, Lightweight with exclusive incubating performance for valuable tests
ILP series has a thermal electric module-Peltier cooled type which is very quiet, anti-vibration and have small generation of heat to just fit a bench-top personal incubator!
ILP series has a thermal electric module-Peltier cooled type which is very quiet, anti-vibration and have small generation of heat to just fit a bench-top personal incubator!
Active Questions & AnswersAsk a Question
There are no current Discussions
Refrigerated Incubator Service ProvidersView All (28)
Documents & Manuals
There are no Documents or Manuals available.
Features of ILP-02
Operating features
• 5°C to 40°C at room temperature 25°C
• Microprocess PID control/ Auto-tuning/ Calibration
• Digital timer: 1 min to 99 hr 59 min, delayed ON/ OFF
• Over-temperature limiter
• 3 different temperature values memorable without auto-tuning
• 9 steps of temperature profiles programmable and repeat up to 200 cycles
• Adjustable fan speed within 3 steps and defrosting time/ period control
• Digital LED display (0.1°C resolution) with touch-sensitive keypads
• RS-232 interface available
Constructional features
• Tempered inner glass doors are equipped for all models! (14L/ 48L)
• Maximum 2 X 1000mL Erlenmeyer flasks can be stored in the smallest chamber (14L)
• Environment-friendly insulation material-EPDM used for safe and convenient operating (ASTM-C534)
• Space-saving compact size on bench-top and can simply be stacked up as dual chambers
General Specifications
There are no General Specifications available.
Additional Specifications
Chamber Volume (L/cu. ft.): 14/0.5
Temperature Range (°C°F):
[*]5 ~ 40(41 ~ 104) at ambient temperature 20°C
[*]10 ~ 40(50 ~ 104) at ambient temperature 25°C
[*]15 ~ 40(59 ~ 104) at ambient temperature 30°C
Temperature Fluctuation (°C/°F) at 100oC: 0.1/0.18
Temperature Variation (°C/°F) at 100oC: 0.5/0.9
Interior Dimensions (WxDxH) (mm/inch): 310 x 200 x 230 / 12.4 x 7.9 x 9.1
Exterior Dimemsions (WxDxH) (mm/inch): 430 x 495 x 400 / 17.0 x 19.4 x 15.7
Net Weight (kg/lbs): 27.5/60
Electrical Requirements (230V): 50/60Hz, 1.8A
Electrical Requirements (120V): 50/60Hz, 3.4A
