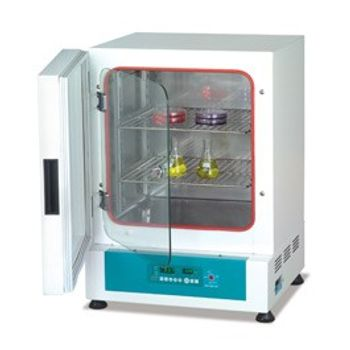

Jeio Tech - IB-11E
Manufactured by Jeio Tech
Space saving design and dependable, trouble-free heating system
IB-E series completely warp inner chambers in film type heaters that is perfectly safe from any mechanical vibration and noise, in addition to prevents frequent mechanical trouble.
Active Questions & AnswersAsk a Question
There are no current Discussions
General Purpose Incubator Service ProvidersView All (29)
Documents & Manuals
There are no Documents or Manuals available.
Features of IB-11E
Operating features
• 3°C above room temperature to 60°C
• Microprocess PID control/ Auto-tuning/ Calibration
• Digital timer: 1 min to 99 hr 59 min, delayed ON/ OFF
• Over-temperature limiter/ Door opening alarm
• 3 different temperature values memorable without auto-tuning
• Digital LED display (0.1°C resolution) with touch-sensitive keypads
Constructional features
• Completely safe anti-vibration design is helpful to cultivate yeast and not to disturb nearly use of other instruments like
a microscope
• Space saved dimension, lightweight and compact design with fully sealed gasket
• Stackable 2 steps up with exclusive stacking kits (optional)
• Optimized sample inspection through tempered inner glass door without affecting chamber temperature
• Separable shelves and rounded inner chamber corners for easy cleaning
General Specifications
There are no General Specifications available.
Additional Specifications
Chamber Volume (L/cu. ft.): 150/5.3
Temperature Range (°C/°F): Amb. +3 to 60 / Amb. +5.4 to 140
Temperature Fluctuation (±°C/oF) at 100oC: 0.3/0.54
Temperature Variation (±°C/°F) at 100oC: 0.8/1.44
Interior Dimensions (WxDxH) (mm/inch): 500 x 515 x 585 / 23.5 x 24.8 x 34.0
Exterior Dimemsions (WxDxH) (mm/inch): 595 x 630 x 865 / 23.5 x 24.8 x 34.0
Net Weight (kg/lbs): 47
Electrical Requirements (230V): 50/60Hz, 2.2A
Electrical Requirements (120V): 50/60Hz, 4.2A
