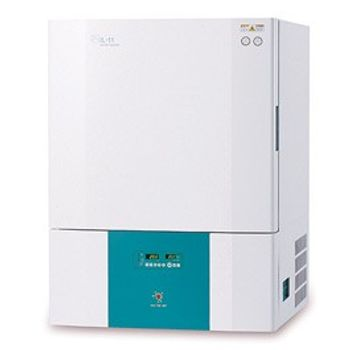

Jeio Tech - IL-11A

Manufactured by  Jeio Tech
Follow this Equipment

Exclusive air-jacked type incubators prevent the inner chamber from outside air disturbance with excellent uniformity

IL-A series is perfectly safe from water-evaporations by evaporator of cooling system or blower, especially ideal for incubating test of an easily drying medium.
Active Questions & AnswersAsk a Question

There are no current Discussions

General Purpose Incubator Service ProvidersView All (29)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of IL-11A
Operating features   • 4°C to 60°C   • Microprocess PID control/ Auto-tuning/ Calibration   • Digital timer: 1 min to 99 hr 59 min, delayed ON/ OFF   • Over-temperature limiter/ Door opening alarm   • 3 different temperature values memorable without auto-tuning   • 9 steps of temperature profiles programmable and repeat up to 200 cycles   • Adjustable fan speed within 3 steps and defrosting time/ period control   • Digital LED display (0.1°C resolution) with touch-sensitive keypads   • RS-232 interface available   Constructional features   • Air-jacketed type: outer heat exchange and inner gravity convection independently   • Enough capacity - large size of chambers with maximum 254L (9cu ft)   • One electrical outlet with safety cover allows use of other electric instruments in the chamber   • Optimized sample inspection through tempered inner glass door without affecting chamber temperature   • Separable shelf and rounded inner chamber corners for easy cleaning
General Specifications

There are no General Specifications available.

Additional Specifications

Chamber Volume (L/cu. ft.): 162/5.7
Refrigerator: 1/6 HBP
Temperature Range (°C/°F): +4 to 60 / +39.2 to 140
Temperature Fluctuation (±°C/oF) at 100°C: 0.2/0.36
Temperature Variation (±°C/°F) at 100oC: 0.5/0.9
Interior Dimensions (WxDxH) (mm/inch): 600 x 540 x 500 / 24.0 x 21.3 x 20.0
Exterior Dimemsions (WxDxH) (mm/inch): 770 x 772 x 1060 / 30.0 x 30.0 x 42.0
Net Weight (kg/lbs): 108/23.1
Electrical Requirements (230V): 50/60Hz, 6.6A
Electrical Requirements (120V): 60Hz, 10.2A
