This product is Discontinued

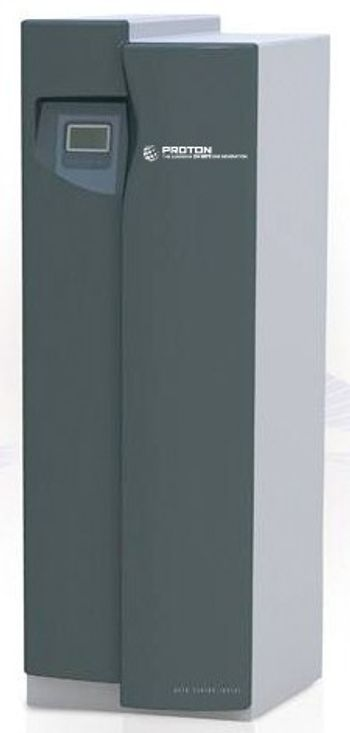

Proton OnSite - NiGen LCMS
Manufactured by Proton OnSite
No Documents
For laboratory and scientific needs, hydrogen is used as an ultra high purity fuel and reducing agent. HOGEN® hydrogen...
For laboratory and scientific needs, hydrogen is used as an ultra high purity fuel and reducing agent. HOGEN® hydrogen generation systems are well-suited to provide ultra high purity hydrogen as a carrier gas with consistent composition and predictable low levels of oxygen and nitrogen.
Active Questions & AnswersAsk a Question
There are no current Discussions
Hydrogen Service ProvidersView All (8)
Documents & Manuals
There are no Documents or Manuals available.
Features of NiGen LCMS
- Air + N2configuration for AB LC-MS
- High-efficiency hydrocarbon removal columns included
- Air + N2configuration for Agilent Jet Stream LC-MS
- CPU for control of up to 32 units
- CAN-BUS communication
- Maintenance diary
- Report alarms
- Equipped with wheels
General Specifications
There are no General Specifications available.
Series Modals
Proton OnSite - LCMS 100.0
[+] View Model Specifications| Depth | 43.3 in |
| Height | 51.1 in |
| Temperature Range | 40 to 100 °F |
| Purity | 98 % |
| Width | 17.3 in |
| Power Requirements | 115 / 230 VAC |
| Weight | 440 lbs |
| Additional Model Specifications | Flow Rate: 100 SLPM
Output Pressure: 0 to 7 barg |
Proton OnSite - LCMS 40.0
[+] View Model Specifications| Depth | 43.3 in |
| Height | 51.1 in |
| Temperature Range | 40 to 100 °F |
| Purity | 98 % |
| Width | 17.3 in |
| Power Requirements | 115 / 230 VAC |
| Weight | 420 lbs |
| Additional Model Specifications | Flow Rate: 40 SLPM
Output Pressure: 0 to 7 barg |
Proton OnSite - LCMS 40.1
[+] View Model Specifications| Depth | 43.3 in |
| Height | 51.1 in |
| Temperature Range | 40 to 100 °F |
| Purity | 98 % |
| Width | 17.3 in |
| Power Requirements | 115 / 230 VAC |
| Weight | 485 lbs |
| Additional Model Specifications | Flow Rate: 40 SLPM
Output Pressure: 0 to 7 barg |
