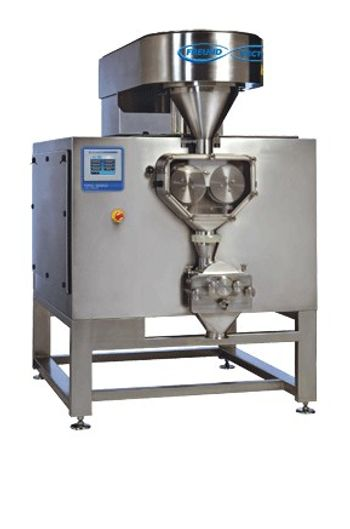

Freund-Vector - TFC Models
No Documents
Pilot/Production Roll Compaction System
Active Questions & AnswersAsk a Question
There are no current Discussions
Roller Compactors Service ProvidersView All (12)
Documents & Manuals
There are no Documents or Manuals available.
Features of TFC Models
Maximum Processing Flexibility
Wide Production Capacity: 1Kg to 100 Kg/hr * Optional Knife Mill Available * Integrated on Front of Unit
Engineered Scalability * Roll Gap Control via Hydraulic Pressure * Roll and Screw Design Scalable to Production TFC Models
Unique Compaction Seal Design * Contained Compaction Zone for * Reducing Amount of Fines
Inline De-Aeration Design * Vertical Hopper and Screw De-Aerates Product Prior to Compaction * Optional Vacuum De-Aeration Available
Color Touchscreen Control System * Roll Gap Measurement Display * Amp and Watt Displays for Roll and Screw * Validatable Process Control Hydraulic Roll Pressure Roll and Screw Speeds
Quick Changeover Design * Cantilevered Roll for Easy Cleaning
Portable Self-Contained System * Electrical and Compressed Air Connections
General Specifications
There are no General Specifications available.
Additional Specifications
Capacity (Kg/hr):1 - 100
Roll Width x Diameter (mm):b
Roll Speed (RPM):3.0 - 24.0
Roll Force(Tons):0.0 - 5.6
Series Modals
Freund-Vector - TFC-1230
[+] View Model Specifications| Roller Drive Motor Speed | 20 rpm |
| Roller Motor Speed Range | 2 to 20 rpm |
| Roller Width | 0.3 m |
| Additional Model Specifications | Capacity (Kg/hr):100 - 300 Roll Width x Diameter (mm):120 x 300 Roll Speed (RPM):2.0 - 20.0 Roll Force(Tons):0.0 - 32.0 |
Freund-Vector - TFC-1540
[+] View Model Specifications| Roller Drive Motor Speed | 20 rpm |
| Roller Motor Speed Range | 2 to 20 rpm |
| Roller Width | 0.4 m |
| Additional Model Specifications | Capacity (Kg/hr):200 - 700 Roll Width x Diameter (mm):150 x 400 Roll Speed (RPM):2.0 - 20.0 Roll Force(Tons):0.0 - 42.0 |
Freund-Vector - TFC-520
[+] View Model Specifications| Roller Drive Motor Speed | 24 rpm |
| Roller Motor Speed Range | 3 to 24 rpm |
| Roller Width | 0.2 m |
| Additional Model Specifications | Capacity (Kg/hr):1 - 100 Roll Width x Diameter (mm):50 x 200 Roll Speed (RPM):3.0 - 24.0 Roll Force(Tons):0.0 - 15.0 |
