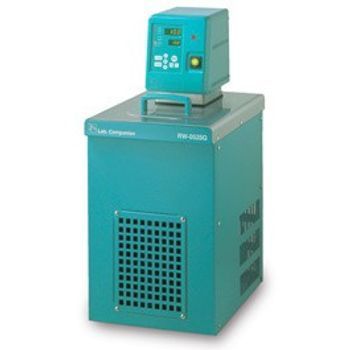

Jeio Tech - RW-3025G

Manufactured by  Jeio Tech
Follow this Equipment

Rapid heating and cooling throughout the entire temperature range!

RW-G series has powerful circulation pump for external and internal circulating. The temperatures can be down to maximum -35°C that maintain and control accurate low temperatures for use with Refractometers and Viscometers.
Active Questions & AnswersAsk a Question

There are no current Discussions

Circulators / Chillers Service ProvidersView All (6)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of RW-3025G

Operating features   • -25°C to 150°C for RW-25G/   -35°C to 150°C for RW-40G   • Microprocess PID control/ Auto-tuning/ Calibration   • Digital timer: 1 min to 99 hr 59 min, delayed ON/ OFF   • Over-temperature limiter and low fluid level protection   • 3 different temperature values memorable without auto-tuning   • Digital LED display (0.1°C resolution) with splash-proof keypads   • RS-232 interface available      Constructional features   • Turbulence reduced five-speed duplex pump and built-in cooling coil let you use in open or closed bath applications   (1 to 3 steps of pump for internal circulation/ 4 and 5 steps for external circulation)   • Baffle plate screens circulating pump, heater and sensor to minimize shaking bath fluids and protect sample and   operators from direct contact   • Dry-running protection; automated heating element cut-off and audible and visual warning   • Seamless stainless steel tank with a reservoir drain that resists corrosion and make cleaning easy   • Use CFC-free refrigerant R-134A, R-404A and double service valve to prevent the leakage of refrigerant   • Quick-release front grille for easy condenser cleaning and space saving design uses minimal bench space

General Specifications

There are no General Specifications available.

Additional Specifications

Bath Volume (L/cu.ft.): 30.0/1.1
Working Temperature Range (°C/°F): -25 to 150 / -13 to 302
Temperature Stability (±°C/°F): 0.08/0.14
Cooling Capacity:
at -20°C (-4°F), W: 390
at 0°C (+32°F), W: 570
at +20°C (+68°F), W: 680
Refrigerator: 3/4 LBP, R-404A
Pump:
MAx. pressure, max. flow rate:5.9 PSI (406.8 millibar), 7.4 gallons/minute (28.0 liters/minute)
Max. Suction flow rate:2.6 gallons/minute (10.0 liters/minute)
Dimensions
Bath opening/depth (WxLxH) (mm/inch): 300 x 264, 230 / 11.8 x 10.4, 9.0
Overall (WxLxH) (mm/inch): 440 x 620 x 895 / 17.3 x 24.4 x 35.2
Net Weight (kg/lbs): 67.0/147.7
Electrical Requirements (230V, 60Hz): 13.8A
Electrical Requirements (230V, 50Hz): 13.8A
