Alexanderwerk - RFG 150 DA
Manufactured by Alexanderwerk

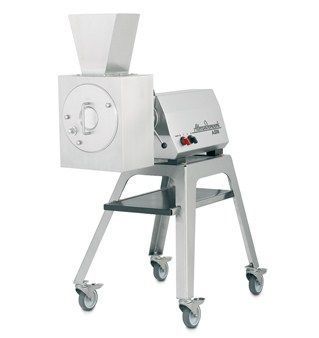

The RFG 150 DA has been developed by Alexanderwerk as a slip-on attachment to a universal drive motor of the UM series.
The RFG 150 DA has been developed by Alexanderwerk as a slip-on attachment to a universal drive motor of the UM series. The UM universal drive motor has an integrated quick release coupling via which a variety of slip-on attachments can be mounted on the UM. Such attachments may be optionally grater/shredders, moist granulators, or mixers.
optional: WIP design (Wash In Place)
optional: pharmaceutical design
optional: chassis
Active Questions & AnswersAsk a Question
There are no current Discussions
High Shear Granulators Service ProvidersView All (12)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
Power Requirements | 3 kW |
Weight | 80 kg |
Additional Specifications
Throughput, continuous operation: through 600 Kg/hr
Rotor diameter: 150 mm
Material: 1.4571, AlSi 316 Ti
