Agilent Technologies - Bravo
Manufactured by Agilent Technologies
Versatility and precision in a compact footprint
Versatility and precision in a compact footprint

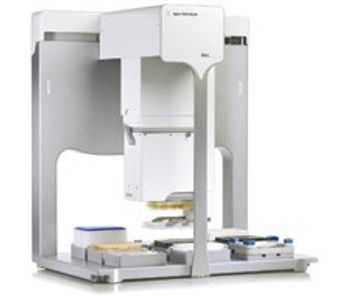

The Agilent Bravo Automated Liquid Handling Platform is the fastest and most versatile small footprint liquid handling system available. Its space-saving nine plate-position footprint can fit inside a standard laminar flow hood, enabling automated liquid handling for cell-based assays or hazardous reagent handling. Additionally, the unique, open design of the Bravo Platform permits access from all sides for simple integration with other devices and unencumbered standalone use.
The Agilent Bravo Automated Liquid Handling Platform is the fastest and most versatile small footprint liquid handling system available. Its space-saving nine plate-position footprint can fit inside a standard laminar flow hood, enabling automated liquid handling for cell-based assays or hazardous reagent handling. Additionally, the unique, open design of the Bravo Platform permits access from all sides for simple integration with other devices and unencumbered standalone use.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Liquid Handling Service ProvidersView All (10)
Documents & ManualsView All Documents
Features of Bravo
- Compact: Space-saving nine microplate-position footprint fits in a laminar flow hood without disrupting air flow
- Precise: Uses the proven high-accuracy pipette heads of the Vertical Pipetting Station System for dispensing from 100 nL to 200 µL in 96-, 384-, and 1536-well microplates with either disposable or fixed tips for specific applications
- Versatile: Seven different easy-change head types can be swapped in minutes, and numerous platepad options are available to enable a wide range of assays
- Functional: Unique open design permits access from all sides for simple system integration as well as standalone use
- Easy to Use: Powered by VWorks Automation Control Software with outstanding event driven scheduler, easy-to-use interface, and innovative error recovery technology, complete control is easy for all levels of operators
General Specifications
| Depth | 43.8 cm (17.25 in.) |
| Maximum Dispensing Volume | 200 μL |
| Height | 69.7 cm (27.4 in.) |
| Temperature Range | 5 to 40 °C |
| Width | 64.8 cm (25.5 in.) |
| Power Requirements | 110–240 VAC, 50/60Hz, 4A for 96-or 384-channel head, 5A for 8-channel head |
| Weight | 52.1 kg (114.9 lbs) |
| Deck Capacity | 9 |
| Dispensing Type | Multi-channel |
| Robotic Plate Handler | 0 |
Additional Specifications
Software: VWorks Automation Control software, ActiveX control
Controller: Windows 2000 and Windows XP
Interface: 10Base T Ethernet port, RS-232 serial
Certification: CE certified
