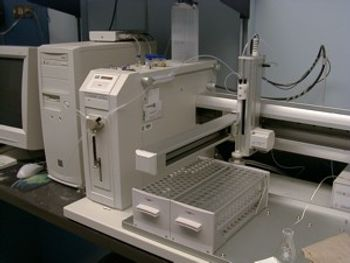

Accommodates 96- or 384-well microplates and a wide variety of vials, tubes or bottles, more than 300 standard or custom made racks. Add injection capabilities with the 819 Injection Module; configure with two 819 Injection Modules for increased throughput or for analytical and preparative injections. "Make-before-break" stator and large-bore rotor seal prevent pressure spikes from injection at high flows. Performs sample preparation, injection and fraction collection on one robust platform. Separate flow paths for both sample handling and fraction collection Eliminates contamination between your samples and fractions. Load analytical- and preparative scale sample volumes and fractions. Pierces most thick or thin septum (including Vacutainer™ tubes)               Sampler Type X/Y/Z with stationary rack design Locator Plate Capacity Up to five Code 200 Series racks, up to seven Code 20x or 30x Series racks (or a combination of up to five racks of both types), or one Code 500 Series and one Code 200 Series rack Arm Speed >45.7 cm/sec (>18 in./sec) in X dimension >40.6 cm/sec (>16 in./sec) in Y dimension Horizontal Motion Strength X: 5 kg (11.1 lbs.) Y: 7 kg (15.6 lbs.) Vertical Punch Strength 4.9 kg (11 lbs.) Syringe Pump Internal, integral, high-precision, single-piston Syringe Capacity 100, 250 or 500 µl; 1, 5, 10 or 25 ml Accuracy Liquid handling: 99.7% with 50 µl of water Injection Carryover <0.1% Maximum Syringe Flow Rates for Water Syringe Size Max. Flow Rate ml/min 100 µl 3.37 250 µl 8.43 500 µl 16.87 1 ml 33.75 5 ml 100 10 ml 100 25 ml 100               Probe Positioning Performance Accuracy:±0.5 mm in X/Y dimensions±1 mm in Z dimension Repeatability:±0.25 mm in X/Y/Z dimensions Probe Rinse Through a dedicated rinse station for rinsing the inside and outside of the probe; selectable rinse volume and flow rate. Optional inserts for level-sensing, nonleveling-sensing and flow rinse Reproducibility Liquid Handling: 1.37% CV with 50 µl of water Injection: <0.9% CV with 1 ml syringe and total loop filling method Front Panel 8-character display, START and emergency STOP soft keys Software Via Gilson TRILUTION Software Communication Interface RS-232 or GSIOC; Four inputs (contact closure, TTL, or open-collector), four relay outputs and one switched +24V DC 1A output Dimensions (w x d x h) 91.4 x 61 x 55.8* cm (36 x 24 x 22* in.) *Maximum height. Z-arm height is adjustable to accommodate vessel heights between 1 and 150 mm (dependent on installed Z-arm). Weight 39.9 kg (89 lbs.) Power Requirements Frequency: 50-60 Hz Voltage: 100-120 or 220-240V, mains voltage fluctuations not to exceed ±10% of the nominal voltage Current rating: 2.0A for 100-120V or 1.0A for 220-240V Manufacturing Standards Meet applicable Safety and EMC certification standards; UL and CE certified
