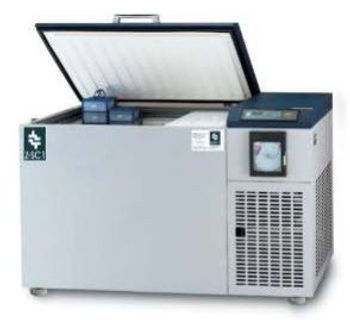

Z-SC1 Corp. - Ultra Low Temperature Chest Freezers

Manufactured by Z-SC1 Corp.

Z-SC1 Corp. Ultra Low Temperature Chest Freezers Product Guide

Peace of mind; your sample will never be compromised!

Very durable and reliable system with an extremely
low noise level. Efficient and effective use of a unique
cascade compressor system with CFC-free natural gas.
Safest environment for your samples due to
temperature and power alarms, standard dry
contacts.

Active Questions & AnswersAsk a Question

There are no current Discussions

Freezers Service ProvidersView All (19)

Request Support

Manuals & DocumentsFeaturesSpecifications

Documents & ManualsView All Documents

Z-SC1 Corp. Ultra Low Temperature Chest Freezers Product Guide

Features of Ultra Low Temperature Chest Freezers

Unique patented safety locking system with automatic pressure compensation: in case of CO2 release in the freezer (due to CO2 backup system), the door automatically compensate the pressure created by the injection of gas, avoiding injuries or accidents..

Special design ensures effective circulation of cool air and thus, uniform temperature inside the freezer so as to ensure sample safety.

High insulation technology: double layered VIP (Vacuum Insulation Panel) door ensures temperature preservation. And increases efficiency by reducing the door opening space requirements.

Unique insulation layer lowers its energy consumption by 11%

General Specifications

There are no General Specifications available.

Series Modals

Z-SC1 Corp. - DF9007 (7 cu.ft.)

[+] View Model Specifications

Z-SC1 Corp. - DF9010 (10.5 cu.ft.)

[+] View Model Specifications

Z-SC1 Corp. - DF9014 (14 cu.ft.)

[+] View Model Specifications

Z-SC1 Corp. - DF9017 (17.5 cu.ft.)

[+] View Model Specifications

Z-SC1 Corp. - DF9020 (21 cu.ft.)

[+] View Model Specifications

Looking for New or Used Equipment?

Shop on LabX

Shop on Labx.com

Depth	50.5 in
Defrost Type	Automatic
Height	41 in
Internal Depth	20 in
Freezer Orientation	Chest
Internal Height	26.5 in
Width	31 in
Freezer Type	Ultra-Low Temperature
Internal Width	22.5 in
Minimum Temperature	-90 °C
Weight	211 kg
Freezer Temperature Range	-40 to -90 °C
Freezer Capacity	7 cu. ft.
Additional Model Specifications

Depth	31 in
Defrost Type	Automatic
Height	41 in
Internal Depth	20 in
Freezer Orientation	Chest
Internal Height	26.5 in
Width	63 in
Freezer Type	Ultra-Low Temperature
Internal Width	34.5 in
Minimum Temperature	-90 °C
Weight	236 kg
Freezer Temperature Range	-40 to -90 °C
Freezer Capacity	10.5 cu. ft.
Additional Model Specifications

Depth	31 in
Defrost Type	Automatic
Height	41 in
Internal Depth	20 in
Freezer Orientation	Chest
Internal Height	26.5 in
Width	74 in
Freezer Type	Ultra-Low Temperature
Internal Width	46 in
Minimum Temperature	-90 °C
Weight	261 kg
Freezer Temperature Range	-40 to -90 °C
Freezer Capacity	14 cu. ft.
Additional Model Specifications

Depth	31 in
Height	41 in
Internal Depth	20 in
Freezer Orientation	Chest
Internal Height	26.5 in
Width	86 in
Freezer Type	Ultra-Low Temperature
Internal Width	58 in
Minimum Temperature	-90 °C
Weight	286 kg
Freezer Temperature Range	-40 to -90 °C
Freezer Capacity	17.5 cu. ft.
Additional Model Specifications

Depth	31 in
Defrost Type	Automatic
Height	41 in
Internal Depth	20 in
Freezer Orientation	Chest
Internal Height	26.5 in
Width	98 in
Freezer Type	Ultra-Low Temperature
Internal Width	70 in
Minimum Temperature	-90 °C
Weight	311 kg
Freezer Temperature Range	-40 to -90 °C
Freezer Capacity	21 cu. ft.
Additional Model Specifications
