This product is Discontinued
Julabo - Open Heating Bath Circulators
Manufactured by Julabo
No Documents
Open heating bath circulators with bath tanks made of stainless steel,Plexiglasor Makrolon are designed for internal and external temperature apps.
JULABO open heating bath circulators with bath tanks made of stainless steel, Plexiglas, or Makrolon are designed for internal and external temperature applications. They are primarily used for internal temperature control directly within the bath tank. External closed systems may be connected via the integrated pump connections. Models are available with a variety of bath sizes and other functional characteristics. A variety of bath inserts for laboratory glassware, bath covers, and adjustable floors are available as accessories. Common applications include temperature control of measurement cells, photometers, and samples; heating of glass flasks; and temperature testing of food, luxury articles, and materials.
Active Questions & AnswersAsk a Question
There are no current Discussions
Circulators / Chillers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
Julabo - EA 13A
[+] View Model Specifications| Depth | 13 in |
| Flow Rate | 15 L/min |
| Integrated Bath | 1 |
| Height | 14.2 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 60 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 13 L |
| Width | 16.1 in |
| Internal Width | 7.1 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 16.5 lbs |
| Additional Model Specifications | Cooling coil optional Bath tank Plexiglass |
Julabo - ED-13
[+] View Model Specifications| Flow Rate | 15 L/min |
| Integrated Bath | 0 |
| Temperature Range | 20 to 100 °C |
| Reservoir Volume | 13 L |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Additional Model Specifications |
Julabo - ED-13M
[+] View Model Specifications| Depth | 13 in |
| Flow Rate | 15 L/min |
| Integrated Bath | 1 |
| Height | 14.2 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 100 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 13 L |
| Width | 16.1 in |
| Internal Width | 7.1 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 16.5 lbs |
| Construction | Makrolon |
| Additional Model Specifications |
Julabo - ED-17
[+] View Model Specifications| Flow Rate | 15 L/min |
| Integrated Bath | 0 |
| Temperature Range | 20 to 100 °C |
| Reservoir Volume | 17 L |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Additional Model Specifications |
Julabo - ED-19
[+] View Model Specifications| Flow Rate | 15 L/min |
| Integrated Bath | 0 |
| Temperature Range | 20 to 100 °C |
| Reservoir Volume | 19 L |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Additional Model Specifications |
Julabo - ED-19A
[+] View Model Specifications| Depth | 13 in |
| Flow Rate | 5.1 L/min |
| Integrated Bath | 1 |
| Height | 14.6 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 60 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 19 L |
| Width | 21.7 in |
| Internal Width | 14.2 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 18.7 lbs |
| Construction | Plexiglass |
| Additional Model Specifications |
Julabo - ED-19M
[+] View Model Specifications| Depth | 13 in |
| Flow Rate | 15 L/min |
| Integrated Bath | 1 |
| Height | 14.6 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 100 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 19 L |
| Width | 21.7 in |
| Internal Width | 14.2 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 18.7 lbs |
| Construction | Makrolon |
| Additional Model Specifications |
Julabo - ED-27
[+] View Model Specifications| Depth | 11.8 in |
| Flow Rate | 15 L/min |
| Integrated Bath | 1 |
| Height | 7.9 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 100 °C |
| Internal Height | 7.9 in |
| Reservoir Volume | 27 L |
| Width | 22.4 in |
| Internal Width | 14.2 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 28.6 lbs |
| Construction | Stainless steel |
| Additional Model Specifications |

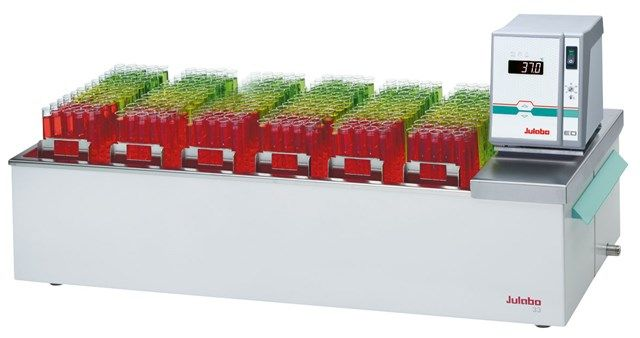

Julabo - ED-33
[+] View Model Specifications| Depth | 13 in |
| Flow Rate | 15 L/min |
| Height | 15 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 100 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 33 L |
| Width | 35.8 in |
| Internal Width | 26.4 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 44 lbs |
| Construction | Stainless steel |
| Additional Model Specifications |

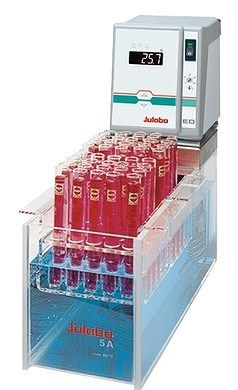

Julabo - ED-5A/B
[+] View Model Specifications| Depth | 15.7 in |
| Flow Rate | 15 L/min |
| Integrated Bath | 1 |
| Height | 13.8 in |
| Internal Depth | 9.4 in |
| Temperature Range | 20 to 60 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 5 L |
| Width | 5.5 in |
| Internal Width | 4.7 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 11.6 lbs |
| Construction | Plexiglass |
| Additional Model Specifications |
Julabo - ED-5M/B
[+] View Model Specifications| Depth | 15.7 in |
| Flow Rate | 15 L/min |
| Integrated Bath | 1 |
| Height | 13.8 in |
| Internal Depth | 9.4 in |
| Temperature Range | 20 to 100 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 15 |
| Width | 5.5 in |
| Internal Width | 4.7 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 11.4 lbs |
| Construction | Makrolon |
| Additional Model Specifications |
Julabo - ED-7A/B
[+] View Model Specifications| Depth | 19.7 in |
| Flow Rate | 15 L/min |
| Integrated Bath | 1 |
| Height | 13.8 in |
| Internal Depth | 13.4 in |
| Temperature Range | 20 to 60 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 7 L |
| Width | 5.5 in |
| Internal Width | 4.7 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 12.3 lbs |
| Construction | Plexiglass |
| Additional Model Specifications |
Julabo - MB-13
[+] View Model Specifications| Depth | 13 in |
| Flow Rate | 10 L/min |
| Integrated Bath | 1 |
| Height | 14.6 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 100 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 13 L |
| Width | 15.4 in |
| Internal Width | 7.1 in |
| Temperature Stability | 0.02 °C |
| Temperature System | Heating |
| Weight | 17.6 lbs |
| Construction | Stainless steel |
| Additional Model Specifications |
Julabo - MB-13A
[+] View Model Specifications| Depth | 13 in |
| Flow Rate | 10 L/min |
| Integrated Bath | 1 |
| Height | 14.2 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 60 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 13 L |
| Width | 16.1 in |
| Internal Width | 7.1 in |
| Temperature Stability | 0.03 °C |
| Temperature System | Heating |
| Weight | 16.5 lbs |
| Construction | Plexiglass |
| Additional Model Specifications |
Julabo - MB-19
[+] View Model Specifications| Depth | 13 in |
| Flow Rate | 10 L/min |
| Integrated Bath | 1 |
| Height | 14.6 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 100 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 19 L |
| Width | 22.4 in |
| Internal Width | 14.2 in |
| Temperature Stability | 0.02 °C |
| Temperature System | Heating |
| Weight | 24.2 lbs |
| Construction | Stainless steel |
| Additional Model Specifications |
Julabo - MB-19A
[+] View Model Specifications| Depth | 13 in |
| Flow Rate | 10 L/min |
| Integrated Bath | 1 |
| Height | 14.6 in |
| Internal Depth | 11.8 in |
| Temperature Range | 20 to 60 °C |
| Internal Height | 5.9 in |
| Reservoir Volume | 19 L |
| Width | 21.7 in |
| Internal Width | 14.2 in |
| Temperature Stability | 0.02 °C |
| Temperature System | Heating |
| Weight | 18.7 lbs |
| Construction | Plexiglass |
| Additional Model Specifications |
