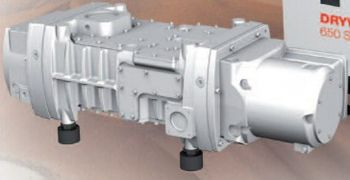

Leybold - DRYVAC 650 S
Manufactured by Leybold
No Documents
DRYVAC Sprinter versions have optimized pumping speeds at pressures >10 mbar. Therefore, they are ideal to provide fast pump down times.
All models from the DRYVAC platform have been designed and adapted to the special needs of applications in the photovoltaic production chain (e.g. PECVD, PVD and crystal growing, etc.), coating applications and process industry in general. DRYVAC pumps and system combinations are rugged, reliable and durable, ready to fulfill stringent process requirements. DRYVAC Sprinter versions have optimized pumping speeds at pressures >10 mbar. Therefore, they are ideal to provide fast pump down times. These models are specially suited for short cycle operation, e.g. load lock applications.
Active Questions & AnswersAsk a Question
There are no current Discussions
Vacuum Pumps Service ProvidersView All (13)
Documents & Manuals
There are no Documents or Manuals available.
Features of DRYVAC 650 S
Water cooled
Low power consumption: 7 kW below 20 mbar for DRYVAC 650 S
Hermetically sealed pump without external shaft seals
Wide voltage and wide frequency drive due to integrated inverter(s)
No need to provide motor protection switch due to integrated inverter(s)
UL listed materials
Most compact dry pump, with the smallest footprint for pump systems
Optimized Cost of Ownership including the lowest power consumption available on the market today
Utmost package flexibility
Low noise level
Highest reliability
Integrated self-monitoring and control
No unscheduled down times
Minor maintenance demands
General Specifications
| Max. Pumping Speed | 630 m3/hr |
| Exhaust Connection | DN 63 ISO-K |
| Maximum Temperature | 40 °C |
| Power Requirements | 230 V / 50 Hz |
| Inlet Connection | DN 100 ISO-K |
| Peak Power | 15 kVA |
| Noise Level | 67 dB |
