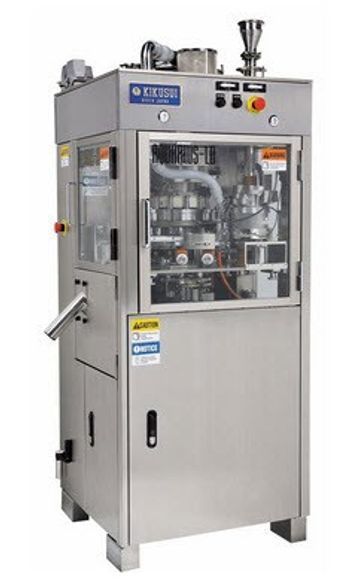

KIKUSUI - AQUARIUS-LD
Manufactured by KIKUSUI
No Documents
Laboratory scale Hybrid Rotary Tablet Press
The AQUARIUS-LD is a newly designed Multifunctional Hybrid Single-sided Lab Scale Tablet Press capable of producing standard single layer, Bi-layer and Dry Coated tablets all on the same machine. Changeover is enhanced by our unique module concept, which creates a quick and easy exchange from Bi-layer to Dry Coating. Also it is suitably designed for R&D / Lab applications with a small scale Induced Die Feeder and Hopper for less powder usage.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Asked byBruno
Tablet Presses Service ProvidersView All (12)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
KIKUSUI - AQUARIUS-LD-A
[+] View Model Specifications| Depth | 700 mm |
| Height | 1610 mm |
| Number of Stations | 18 |
| Width | 690 mm |
| Peak Power | 2.2 kW |
| Tablet Depth | 5 mm |
| Weight | 1400 kg |
| Throughput | 16200 samples/hr |
| Additional Model Specifications | No of stations: 18
Type of tooling: B Max. pressure (kN): 1st5(2L)/Main50 Max. tablet diameter (mm): 16 Turret speed (rpm): 5-15(30/DC) Tablets / hr: 5,400-16,200(32,400) Filling depth (mm): (1)1-8(2)3-14 Tablet thickness (mm): 0-5 Main motor (kW): 2.2 |
KIKUSUI - AQUARIUS-LD-A -9
[+] View Model Specifications| Depth | 700 mm |
| Height | 1610 mm |
| Number of Stations | 9 |
| Width | 690 mm |
| Peak Power | 2.2 kW |
| Tablet Depth | 5 mm |
| Weight | 1400 kg |
| Throughput | 8100 samples/hr |
| Additional Model Specifications | No of stations: 9
Type of tooling: D Max. pressure (kN): 1st5(2L)/Main50 Max. tablet diameter (mm): 16 Turret speed (rpm): 5-15(30/DC) Tablets / hr: 2,700-8,100(16,200) Filling depth (mm): (1)1-8(2)3-14 Tablet thickness (mm): 0-5 Main motor (kW): 2.2 |
