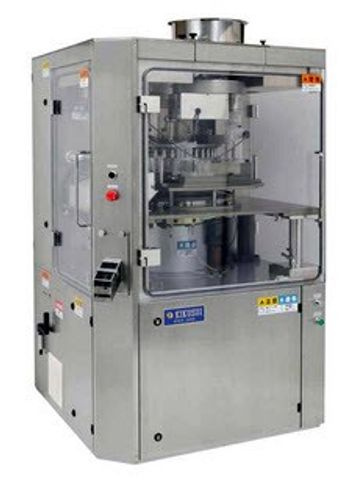

KIKUSUI - AQUARIUS G-J
Manufactured by KIKUSUI
No Documents
High Speed Tablet Press, Turret exchangeability
Provide the latest technology to execute high & Stable tableting production for pharmaceuticals.
The AQUARIUS G is the latest press from KIKUSUI designed for pharmaceutical production.
It provides turret exchangeability, which has the Turret Arm Swinging System making turret exchange a quick and simple task, as a Standard Feature.
The AQUARIUS G is the latest press from KIKUSUI designed for pharmaceutical production.
It provides turret exchangeability, which has the Turret Arm Swinging System making turret exchange a quick and simple task, as a Standard Feature.
Active Questions & AnswersAsk a Question
There are no current Discussions
Tablet Presses Service ProvidersView All (12)
Documents & Manuals
There are no Documents or Manuals available.
Features of AQUARIUS G-J
General Specifications
There are no General Specifications available.
Series Modals
KIKUSUI - 30 Station
[+] View Model Specifications| Depth | 1010 mm |
| Height | 1750 mm |
| Number of Stations | 30 |
| Width | 1010 mm |
| Peak Power | 7.5 kW |
| Tablet Depth | 8 mm |
| Weight | 3100 kg |
| Throughput | 180000 samples/hr |
| Additional Model Specifications | Type of tooling:D
Max. pressure (kN): Pre100/Main100 Max. tablet diameter (mm): 25 Turret speed (rpm): 20-100 Tablets / hr: 36,000-180,000 Filling depth (mm): 1-18 Tablet thickness (mm): 0-8 |
KIKUSUI - 36 Station
[+] View Model Specifications| Depth | 1010 mm |
| Height | 1750 mm |
| Number of Stations | 36 |
| Width | 1010 mm |
| Peak Power | 7.5 kW |
| Tablet Depth | 8 mm |
| Throughput | 259200 samples/hr |
| Additional Model Specifications | Type of tooling:B
Max. pressure (kN): Pre100/Main100 Max. tablet diameter (mm): 16 Turret speed (rpm): 20-120 Tablets / hr: 43,200-259,200 Filling depth (mm): 1-18 Tablet thickness (mm): 0-8 |
KIKUSUI - 45 Station
[+] View Model Specifications| Depth | 1010 mm |
| Height | 1750 mm |
| Number of Stations | 45 |
| Width | 1010 mm |
| Peak Power | 7.5 kW |
| Tablet Depth | 8 mm |
| Weight | 3100 kg |
| Throughput | 324000 samples/hr |
| Additional Model Specifications | Type of tooling: BB
Max. pressure (kN): Pre100/Main100 Max. tablet diameter (mm): 11 Turret speed (rpm): 20-120 Tablets / hr: 54,000-324,000 Filling depth (mm): 1-18 Tablet thickness (mm): 0-8 |
