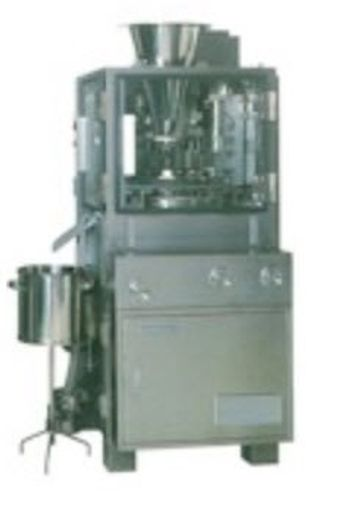

KIKUSUI - VIRGO
Manufactured by KIKUSUI
No Documents
High Speed Small-sized Tablet Press
High Speed Small-sized Tablet Press
Small but Versatile
Its compact design takes up the least amount of floor space, yet the VIRGO has the power to perform all the necessary functions required in general tableting runs. With the instrumentation provided by Kikusui, the user can monitor forces for pre and main compression, as well as ejection force.
Small but Versatile
Its compact design takes up the least amount of floor space, yet the VIRGO has the power to perform all the necessary functions required in general tableting runs. With the instrumentation provided by Kikusui, the user can monitor forces for pre and main compression, as well as ejection force.
Active Questions & AnswersAsk a Question
There are no current Discussions
Tablet Presses Service ProvidersView All (12)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
KIKUSUI - 12 Station
[+] View Model Specifications| Depth | 630 mm |
| Height | 1610 mm |
| Number of Stations | 12 |
| Width | 750 mm |
| Peak Power | 2.2 kW |
| Tablet Depth | 5 mm |
| Weight | 1100 kg |
| Throughput | 50400 samples/hr |
| Additional Model Specifications | Type of tooling: B
Max. pressure (kN): Pre30/Main50 Max. tablet diameter (mm): 16 Turret speed (rpm): 10-70 Tablets / hr: 7,200-50,400 Filling depth (mm): 1-16 Tablet thickness (mm): 0-5 |
KIKUSUI - 18 Station
[+] View Model Specifications| Depth | 630 mm |
| Height | 1610 mm |
| Number of Stations | 18 |
| Width | 750 mm |
| Peak Power | 2.2 kW |
| Tablet Depth | 5 mm |
| Weight | 1100 kg |
| Throughput | 10800 |
| Additional Model Specifications | Type of tooling:B
Max. pressure (kN): Pre30/Main50 Max. tablet diameter (mm): 16 Turret speed (rpm): 10-70 Tablets / hr: 10,800-75,600 Filling depth (mm): 1-16 Tablet thickness (mm): 0-5 |
KIKUSUI - 24 Station
[+] View Model Specifications| Depth | 630 mm |
| Height | 1610 mm |
| Number of Stations | 24 |
| Width | 750 mm |
| Peak Power | 2.2 kW |
| Tablet Depth | 5 mm |
| Weight | 1100 kg |
| Throughput | 100800 samples/hr |
| Additional Model Specifications | Type of tooling:BB
Max. pressure (kN): Pre30/Main50 Max. tablet diameter (mm): 11 Turret speed (rpm): 10-70 Tablets / hr: 14,400-100,800 Filling depth (mm): 1-16 Tablet thickness (mm): 0-5 |
