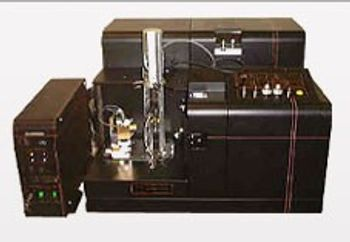

NFS-200 / 300 Near-Field Spectrometer
JASCO is the first company to introduce a commercially available integrated Near-Field Scanning Optical Spectrometer for Photoluminesence measurements.
The room-temperature NFS-200 and ultra-low temperature (~6K) NFS-300 systems represent a major breakthrough in spectroscopic spatial resolution allowing sub-wavelength optical measurements from the sample while simultaneously mapping high resolution topography.
Key to the performance of the NFS systems are the high quality near field optical probes made by an exclusive process to produce consistent shape and apertures required for reliable NSOM measurements. Jasco probes be optimized for resolution or throughput and can be used with a variety of NSOM instruments. Probes are available for the UV through NIR region and can be custom manufactured to meet specific needs.
The NFS-210/310 series is a near-field microscopy system incorporating a feedback mechanism for controlling the distance between the near-field probe and sample surface with a telescope for observation of the sample and probe interface. Laser excitation sources or detectors are not included but a variety of experimental systems can be built by using the access windows on the front and right side of the unit. In addition, direct access to the end of the optical fiber in the near-field probe allows greater flexibility for basic experiments using the near-field microscope system.The sample stage is controlled with exacting precision such that the probe tip remains at a fixed distance from the sample surface, the control movements providing accurate topographical information for the sample surface.
The NFS-220/320 series combines the precision of the NFS near-field microscope system with the additional excitation optics to expose samples to near-field light emitted from the tip of the near-field probe. In addition to topographical maps of the sample surface with a spatial resolution beyond a conventional microscope, the precise control of the distance between the probe tip and sample surface provides optimal illumination for optical nanofabrication applications.
The NFS-230/330 series is an integrated near-field spectrometer system providing fluorescence and photoluminescence spectra with extremely high spatial resolution. The topographical mapping capabilities of near-field and precision control of the distance between the probe tip and sample surface can be used to provide controlled excitation of a submicroscopic region on the sample surface, providing fluorescence and photoluminescence data with a spatial resolution orders of magnitude greater than conventional microscopy.
The room-temperature NFS-200 and ultra-low temperature (~6K) NFS-300 systems represent a major breakthrough in spectroscopic spatial resolution allowing sub-wavelength optical measurements from the sample while simultaneously mapping high resolution topography.
Key to the performance of the NFS systems are the high quality near field optical probes made by an exclusive process to produce consistent shape and apertures required for reliable NSOM measurements. Jasco probes be optimized for resolution or throughput and can be used with a variety of NSOM instruments. Probes are available for the UV through NIR region and can be custom manufactured to meet specific needs.
The NFS-210/310 series is a near-field microscopy system incorporating a feedback mechanism for controlling the distance between the near-field probe and sample surface with a telescope for observation of the sample and probe interface. Laser excitation sources or detectors are not included but a variety of experimental systems can be built by using the access windows on the front and right side of the unit. In addition, direct access to the end of the optical fiber in the near-field probe allows greater flexibility for basic experiments using the near-field microscope system.The sample stage is controlled with exacting precision such that the probe tip remains at a fixed distance from the sample surface, the control movements providing accurate topographical information for the sample surface.
The NFS-220/320 series combines the precision of the NFS near-field microscope system with the additional excitation optics to expose samples to near-field light emitted from the tip of the near-field probe. In addition to topographical maps of the sample surface with a spatial resolution beyond a conventional microscope, the precise control of the distance between the probe tip and sample surface provides optimal illumination for optical nanofabrication applications.
The NFS-230/330 series is an integrated near-field spectrometer system providing fluorescence and photoluminescence spectra with extremely high spatial resolution. The topographical mapping capabilities of near-field and precision control of the distance between the probe tip and sample surface can be used to provide controlled excitation of a submicroscopic region on the sample surface, providing fluorescence and photoluminescence data with a spatial resolution orders of magnitude greater than conventional microscopy.
