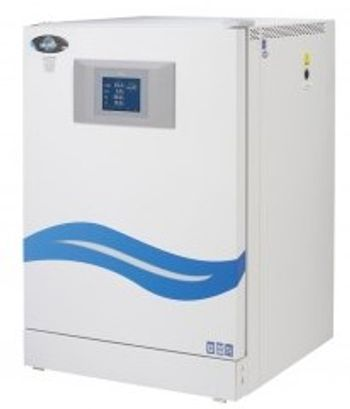

NuAire - In-VitroCell ES NU-5840 Direct Heat CO2 Incubator

Manufactured by  NuAire
Follow this Equipment

NuAire Direct Heat CO2 Incubators provide a stable in-vivo growth model with heating elements located on all 6 sides of the chamber

The In-VitroCell ES NU-5840 Direct Heat Laboratory CO2 Incubator provides an easy method to monitor and control humidity and oxygen levels in the growth chamber for hypoxic stress studies, stem cell culture, carcinogenic tumors, toxicity, and more.
Active Questions & AnswersAsk a Question

There are no current Discussions

CO2 Incubator Service ProvidersView All (28)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of In-VitroCell ES NU-5840 Direct Heat CO2 Incubator
  • Temperature and Gas Monitor and Control
  • Status Indicators – Screen Identity; Run or Standby mode; Door Adjar; Air and CO2 Inject; Air and CO2 Chamber Sampling
  • Date and Time Functions in International Format
  • Password Protection
  • Onscreen Icon Descriptions – Pressing on any icon will provide a description of what the item is.
  • Onscreen Directions – Directions are available to perform calibrations.
  • Step-by-Step directions (i.e. sterilization cycle procedure)
  • Alarm Status Menu - A red “Alarm Status” text button will appear on the Main Screen to indicate a fault within the Incubator system.
  • Maintenance Required Reminders – Onscreen Icon “MAINTENACE REQUIRED” appears when a programmable reminder (0 to 48 months) hits set point to notify filter check.
  • Historical Performance Monitor – Temperature and CO2 gas history is available to view onscreen in graphical form or can be downloaded via USB for alarms, control systems, events, and performance information.
  • Service Settings and Complete Diagnostic Controls
  • System Information
  • Display Settings
  • Available in English, French, German, and Spanish
General Specifications
CO2 Incubator TypeDirect Heat
Depth 27 in
Height40 in
Width 26.5 in
Peak Power625 W
Chamber Volume200 L
CO2 SensorInfrared (IR)
Idle Power250 W
CO2 Range0.1 to 20 %
O2 Range2 to 21 %
Shipping Weight235 lbs
Maximum Shelf Load20 lbs
O2 Accuracy1 %
CO2 Accuracy0.1 %
Shelf Dimensions19.75 x 18.75mm
Temperature Accuracy0.1 °C
Incubator Orientation Benchtop
