AirClean® Systems - Vertical Laminar Flow Workstation

No Documents

AirClean® Systems AC600 Series vertical laminar flow workstations are ideal for applications that are not hazardous to...

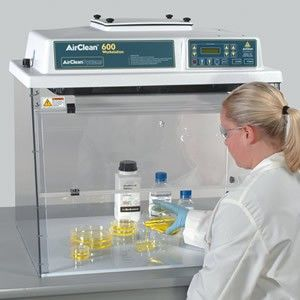

AirClean® Systems AC600 Series vertical laminar flow workstations are ideal for applications that are not hazardous to the operator but require a clean work area. The compact, light weight design allows for multiple “clean zones” within a laboratory.

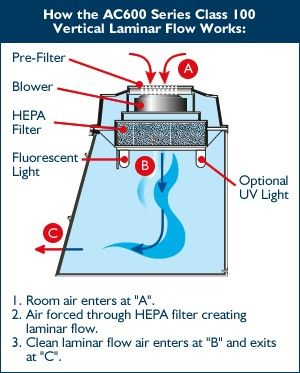

The vertical laminar flow workstation provides clean Class 100 laminar flow air for process protection by using a two stage filtration process. Room air is first cleaned with an electrostatically charged prefilter and then further cleaned with a HEPA filter. AirClean Systems vertical laminar flow workstations have been independently certified to meet or exceed applicable clean bench standards.

Active Questions & AnswersAsk a Question

There are no current Discussions

Fume Hoods Service ProvidersView All (9)

Request Support

Manuals & DocumentsFeaturesSpecifications

Documents & Manuals

There are no Documents or Manuals available.

Features of Vertical Laminar Flow Workstation

Features

UVTect™ microprocessor controller
Class 100 (ISO 5) vertical laminar flow
360-degree visibility
Integral polypropylene base for easy cleaning
All thermoplastic construction
Built-in fluorescent light
HEPA filter monitor automatically indicates when filter change is required
Available in 24”, 32” and 48” widths
Available in 110 V or 220 V versions

Options

Shortwave UV light
Custom sturdy cart allows unit to be made portable
All polypropylene - metal free construction available
ULPA filter
Sliphatch access port

AirClean® Systems AC600 Series Vertical Flow Hoods are UL, CSA, CE CERTIFIED!

General Specifications

There are no General Specifications available.

Series Modals

AirClean® Systems - AC624LF

[+] View Model Specifications

AirClean® Systems - AC632LF

[+] View Model Specifications

AirClean® Systems - AC632TLF

[+] View Model Specifications

AirClean® Systems - AC648LF

[+] View Model Specifications

AirClean® Systems - AC648TLF

[+] View Model Specifications

Looking for New or Used Equipment?

Shop on LabX

Shop on Labx.com

Depth	24 in
Height	30 in
Internal Depth	23 in
Internal Height	19 in
Width	24 in
Internal Width	23 in
Power Requirements	110 V or 220 V
Lighting	Built-in fluorescent
Construction	Thermoplastic
Filter Type	HEPA
Fume Hood Type	Laminar Flow
Additional Model Specifications	Filter: Standard HEPA but can be equipped with ULPA.

Depth	24 in
Height	30 in
Internal Depth	23 in
Internal Height	18 in
Width	32 in
Internal Width	31 in
Power Requirements	110 V or 220 V
Lighting	Built-in fluorescent
Construction	Polypropylene
Filter Type	HEPA
Fume Hood Type	Laminar Flow
Additional Model Specifications	Filter: Standard HEPA but can be equipped with ULPA.

Depth	24 in
Height	40 in
Internal Depth	23 in
Internal Height	28 in
Width	32 in
Internal Width	31 in
Power Requirements	110 V or 220 V
Lighting	Built-in fluorescent
Construction	Polypropylene
Filter Type	HEPA
Fume Hood Type	Laminar Flow
Additional Model Specifications	Filter: Standard HEPA but can be equipped with ULPA.

Depth	24 in
Height	32 in
Internal Depth	23 in
Internal Height	20 in
Width	48 in
Internal Width	47 in
Power Requirements	110 V or 220 V
Lighting	Built-in fluorescent
Construction	Propylene
Filter Type	HEPA
Fume Hood Type	Laminar Flow
Additional Model Specifications	Filter: Standard HEPA but can be equipped with ULPA.

Depth	24 in
Height	42 in
Internal Depth	23 in
Internal Height	30 in
Width	48 in
Internal Width	47 in
Power Requirements	110 V or 220 V
Lighting	Built-in fluorescent
Construction	Polypropylene
Filter Type	HEPA
Fume Hood Type	Laminar Flow
Additional Model Specifications	Filter: Standard HEPA but can be equipped with ULPA.
