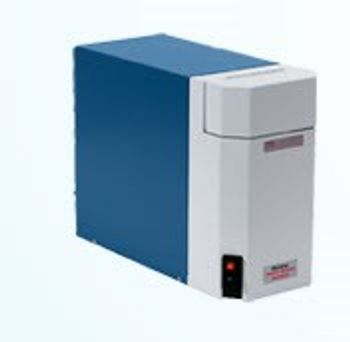

Microtrac - Sample Delivery Controller (SDC)
Manufactured by Microtrac
The Sample Delivery Controller (SDC) works in conjunction with the Microtrac S3500 and Bluewave Laser Diffraction systems.
The Sample Delivery Controller (SDC) works in conjunction with the Microtrac S3500 and Bluewave Laser Diffraction systems. The SDC is fully automated and is designed to deliver a well-dispersed sample quickly and accurately.
Active Questions & AnswersAsk a Question
There are no current Discussions
Particle Size Analyzers Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of Sample Delivery Controller (SDC)
- Dispersion vessel constructed of surgical-grade stainless steel
- Compatible with organic or inorganic samples
- Integrated ultrasonic probe for sample dispersion.
- Vessel features natural turbulence to ensure sample is dispersed at all times
- Self-cleaning mechanism
- Rugged surgical steel construction protects the instrument from corrosion
- High compatibility with samples allows for organizations to have multiple purposes for the instrument
- Ultrasonic power and duration is programmable
- Turbulence ensures sample is consistently dispersed, without external stirrer
- Self-cleaning ensures no carry over from previous measurements
General Specifications
| Depth | 16.7 in |
| Height | 12 in |
| Temperature Range | 5 to 40 °C |
| Width | 6.5 in |
| Power Requirements | 200V |
| Weight | 19 kg |
Additional Specifications
Environmental:
Temperature: 5 to 40 Degrees C (operating) ( 41 to 104 Degrees F)
Humidity: up to 90% non condensing
Fluid:
Viscosity: 5 cp maximum
Volume: 200mls nominal
Flow Rate: 0 to 65 mls/sec with water
Inlet Pressure: 50 psig maximum
Ultrasonics:
Frequency: 40KHz nominal, self tuning to maintain consistent output
Power Level: Variable, 20 to 40 Watts,
Time: 1 to 999 seconds programmable.
