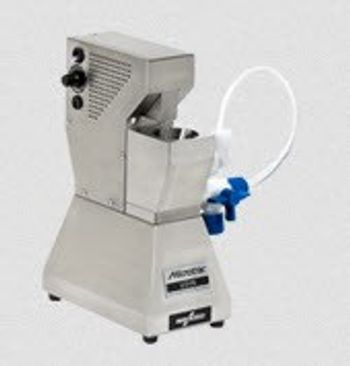

Microtrac - Microtrac Ultra Small Volume Recirculator (USVR)

Manufactured by  Microtrac
Follow this Equipment

The Microtrac Ultra Small Volume Recirculator (USVR) works in conjunction with the Microtrac S3500 or Microtrac Bluewave Laser Diffraction systems.

The Microtrac Ultra Small Volume Recirculator (USVR) works in conjunction with the Microtrac S3500 or Microtrac Bluewave Laser Diffraction systems.
Active Questions & AnswersAsk a Question

There are no current Discussions

Lab Pumps Service ProvidersView All (3)

Request Support
Features of Microtrac Ultra Small Volume Recirculator (USVR)
  • 35 to 50mls recirculation volume
  • Vessel constructed out of surgical-grade stainless steel
  • Variable speed centrifugal pump
  • Compatible with most organic and inorganic solvents
  • Manual fill and drain valve
  • Easily interchanged with other Microtrac Sampling instruments
  • Small sample volume allows users to saves lab resources by requiring minuscule sample amounts during particle analysis
  • Rugged surgical grade stainless steel construction protects the instrument from corrosion when using organic and inorganic solvents
  • Engineered for quick and easy operation
  • Easily interchangeable with other Microtrac sampling instruments – decreases production/process downtime
    • General Specifications
    Depth 170 mm
    Height260 mm
    Width 100 mm
    Power Requirements 90
    Weight4 kg
    Additional Specifications

    [u]Environmental:[/u]
    Temperature: 5 to 40 Degrees Celsius (44 to 104 Degrees F)
    Humidity: 90% RH, non-condensing maximum
    Storage temperature: -10 to 50 Degrees Celsius (14 to 122 Degrees F)
    Pollution: Degree 2
    [u]Liquid:[/u]
    Viscosity: 5cP Maximum
    Volume: 25ml nominal
    Flow Rate: 25ml/sec maximum. 0 to 100% variable motor
    speed.
    [u]Detection System:[/u]
    Fittings: 3/8” 316 Stainless Steel
    Tubing: Fluid return from Analyzer—Teflon 6mm OD
    Fluid flow to Analyzer—Teflon 8mm OD
    3 Way V alve: Material Perflouro Resin
    Drain: 8mm Teflon tubing
    [u]Mixing Tank:[/u]
    Material: 304 Stainless Steel
    [u]Particle Size:[/u]
    Particle Size: 700 microns maximum (sample dependent)
    Density: 15g/ml maximum
    [u]Physical Specifications:[/u]
    Case Material: Stainless Stee
