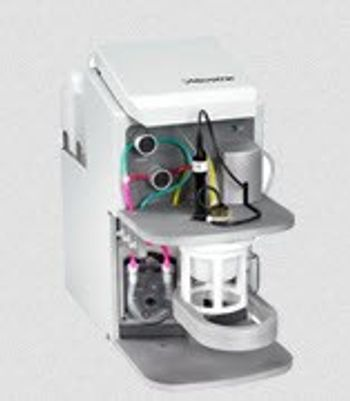

Microtrac - ZETRATOR

Manufactured by  Microtrac
Follow this Equipment

Automated titration device used to control the pH and polyelectrolyte concentration in solutions, colloids, suspensions, and emulsions.

Automated titration device used to control the pH and polyelectrolyte concentration in solutions, colloids, suspensions, and emulsions.

The Zetrator works in conjunction with the Microtrac DLS system. The Zetrator is available in 1, 3, or 5 titrant stations.
Active Questions & AnswersAsk a Question

There are no current Discussions

Titrators Service ProvidersView All (5)

Request Support
Features of ZETRATOR
  • Uses pH as the controlling variable
  • Bubble-free pumping and circulation action
  • Various configurations available to satisfy all applications
  • Intelligent and self -cleaning
  • Seamless software integration
    • General Specifications
    Depth 18 in
    Height14 in
    pH Range0 to 14
    Width 8 in
    Power Requirements 100
    Weight23 lbs
    Additional Specifications

    [u]Mechanical:[/u]
    Dimensions : ~ 14” (355mm)H x 8” (203mm)W x 18” (457mm)D
    Weight : ~ 23 lbs (~ 10.5 kg)
    [u]Electrical:[/u]
    AC-DC Power Supply(1): In:100-240VAC 50-60 Hz; Out: 24VDC 2.5A max.
    Auto-Titrator: In: 24VDC 1.5A max.
    [u]Environmental:[/u]
    Ambient Temperature: 10 to 40 °C (50 to 104 °F)
    Humidity: Up to 90%, non-condensing
    [u]Titrants: (2)[/u]
    Number of Pumps/Bottles: 1, 3, or 5, depending on selected op-tion.
    Fluids:Acids,bases,salts. Fluid flow to Analyzer—Teflon 8mm
    [u]OD[/u]
    Minimum Dose: 20ul
    Bottle Volume: 250 ml each.
    pH Range : 1.5 to 12.5.
    [u]Sample: (2)[/u]
    Minimum Starting Volume : 30 ml
    Maximum Ending Volume : 150 ml
    pH Range : 2 to 12
    [u]pH Probe:[/u]
    Probe Type: Combination type, gel-filled glass electrode
    Measurement Range: 0 to 14 pH (see above - sample is restricted to 2 to 12 pH)
    Measurement Accuracy: ±0.1 pH units
    [u]Other:[/u]
    Other Pumps: 1 for circulation (speed is controlled by Flex software)
    1 for filling (fixed speed)
    Other Bottles: Bottles for Fill and Waste fluids are provided with the system
