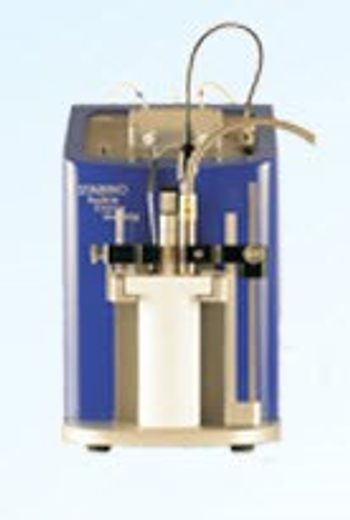

Microtrac - STABINO
Particle Charge Titration Analyzer
The Stabino is an innovative Particle Charge Titration Analyzer that brings a host of advances to the field of Zeta Potential analysis.
Active Questions & AnswersAsk a Question
There are no current Discussions
Titrators Service ProvidersView All (5)
Documents & ManualsView All Documents
Features of STABINO
- High concentration analysis. Up to 70% with no dilution required.
- Can measure the Zeta Potential of particles ranging in size from .3 nanometers to 600 microns.
- No optical parameters needed.
- Forward titration can be achieved in 5 minutes. Bubbles have no effect on the measurement.
- Slot for the NANO-flex, a Dynamic Light Scattering instrument that can measure particles ranging in size from .3 nanometers to 10 microns.
- Can be controlled by a Tablet PC
- Small footprint
- No consumables
General Specifications
There are no General Specifications available.
Additional Specifications
[u]Method:[/u]Streaming potential, calibrated to particle zeta potential or
polyelectrolyte charge standards
[u]Titration:[/u]
Two integrated titration pumps
[u]Titration steps:[/u]
10 Μl to 100 Μl
[u]Titration modes:[/u]
Fixed and dynamic intervals; cationic/anionic, acid/base, salt,
kinetic
[u]Samples:[/u]
Macromoleculare solutions and dispersions with up to 100 Μm
maximum particle size
[u]Sample volume:[/u]
5 to10mL
[u]Sample concentration:[/u]
0.01 to 40%
[u]pH-range:[/u]
2 to 12
[u]pH-meter:[/u]
Included
[u]Conductivity:[/u]
Automatically measured
[u]Conductivity range:[/u]
Up to 100 mmolKCl
[u]Potential range:[/u]
-200 to +200mV
[u]Supplied standard solutions:[/u]
0.0025 N PVS (anionic) and Poly-DADMAC (cationic), 50 mL,
respectively, and calibrated to charge quantity. Particle standard
suspension cationic 50 mV, 10 mL, 30%, for dilution
[u]Accessory-Kit:[/u]
Piston with 0.4 mm and 0.2 mm gap, respectively, measurement
accessory
[u]Tablet PC:[/u]
For controlling the device, for calculation, displaying, exporting
and printing data
[u]Safety:[/u]
CE
