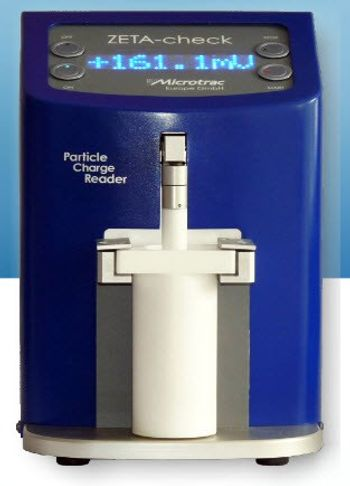

Microtrac - ZETACHECK
By measuring the electrostatic repulsion between particles, researchers can identify the stable zones of dispersions.
Powering the ZETA-check is a cylindrical PTFE beaker with an oscillating displacement piston that is used to agitate the sample. While the sample is agitated the particles are pushed towards the electrodes on each end of the piston, and a measurement can be produced in seconds.
Active Questions & AnswersAsk a Question
There are no current Discussions
Particle Size Analyzers Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of ZETACHECK
- Zeta Potential is measured in seconds
- Solutions with particle size ranging from 0.3 nm to 100 Μm qualify for measurement
- Can measure solutions with a concentration range from 0.01 to 40%
- Battery operated option (Power supply is also available)
- 5 – 10 mL required sample volume for analysis
General Specifications
| Depth | 260 mm |
| Sample Volume Range | 5 to 10 μL |
| Height | 300 mm |
| Width | 180 mm |
| Weight | 6 kg |
Additional Specifications
Method: Streaming potential with calibration of zeta potential
Samples: Applicable to polyelectrolyte solutions, colloids, suspensions, emulsions; all on aqueous base
Particle Size Range: Applicable from 0.5 nm up to 300 Μm size (material dependent)
Prior Sample Knowledge: No sample parameters necessary
Sample Volume: 5 -10 ml
Sample Concentration: 0.05 to 40% v/v, sample and viscosity dependent
Sample concentration: 0.01 to 70%
pH Range: 2 to 12
Conductivity Range: Conductivity monitor10 ΜS/cm to >25 mS/cm
Sample Cell: Teflon sample cell cylinder with standard piston
Piston Displacement: 200 and 400 Μm gap - standard viscosity, standard sensitivity
Standards: Set of 50 ml each of 0.1 n anionic and cationic reference suspension
Accessories: Cleaning kit, 1 set of 10 ml pipettes
Outputs: 1x USB, 1x RS 232
Power Source: Li-Ion accumulator with 12V charger (option)
