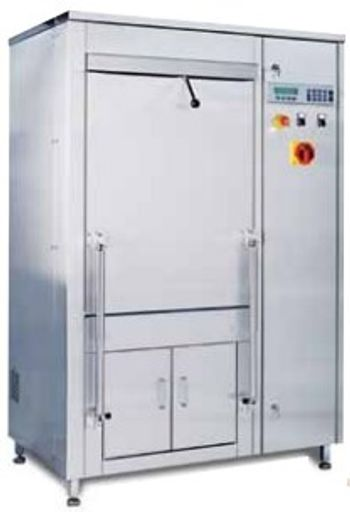

Lancer - 4500 TISS - 4500 TI DPSS Industrial Washer
Manufactured by Lancer
No Documents
The 4500 TISS / 4500 TI DPSS high performance Industrial Washers provide effective mechanical, thermal and chemical cleaning.
The 4500 TISS / 4500 TI DPSS high performance Industrial Washers provide effective mechanical, thermal and chemical cleaning. 4500 TISS / 4500 TI DPSS washers are designed to meet the growing demands of the biotechnology, agritech, petrochem, pharmaceutical, QA/QC laboratories and other industries. It's rugged design and superior construction materials (chamber, door and valves of 316 L stainless steel) help to withstand the aggressive products found in industrial applications. Advanced options including traceability of cycles, validation of cycles, chart recording and a conductivity meter for the more rigorous requirements of industrial applications are available. The 4500 TISS / 4500 TI DPSS models include a single door(TI) and double door(TI DP) variation for pass through applications.
Active Questions & AnswersAsk a Question
There are no current Discussions
Large Capacity Washers Service ProvidersView All (7)
Documents & Manuals
There are no Documents or Manuals available.
Features of 4500 TISS - 4500 TI DPSS Industrial Washer
Key features of 4500 TISS / 4500 TI DPSS Freestanding Industrial Washers:
- Rugged design for industrial applications
- Chamber and direct injection drying for increased productivity
- Main recycling pump constructed of stainless steel to withstand aggressive chemicals
- Advanced options: traceability, validation, conductivity meter and additional dosing pumps
- Double door configurations for pass through applications
- Fast cycles and outstanding results from powerful wash action and design
- Easy to use microprocessor controls with self-diagnostic software and alarms
- Flexibility of multi-level injection washing and interchangeable racks
- All sizes and types of glassware cleaned with chamber configuration choices
- Ergonomic and safe loading of racks on load bearing telescopic runners
- Choice of preset and user-customized (PIN code protected) programs
- Accurate and repeated intake of cleaning chemicals by automatic peristaltic dosing pumps
- Robust high grade 304 L and 316L stainless steel construction (varies by model)
- Cost effective – low life cycle costs and efficient operation uses less resources and inventory
- Eco-friendly low energy, chemicals and water usage
General Specifications
There are no General Specifications available.
Series Modals
Lancer - 4500 TI DPSS
[+] View Model Specifications| Depth | 52.76 in |
| Height | 94.88 in |
| Internal Depth | 33.46 in |
| Internal Height | 40.35 in |
| Width | 84.65 in |
| Internal Width | 33.46 in |
| Maximum Temperature | 95 °C |
| Power Requirements | 30 kw |
| Heat Loss | 9,000 Btu/2265 Kcal/h |
| Noise Level | 72 dB |
| Weight | 1763 lbs |
| Wash/Rinse Cycles | 4 pre-programmed, 36 user-defined |
| Water Consumption | 100 L / 26.4 gal - per fill |
| Drying System | Forced Air |
| Washer Capacity | Large Capacity |
| Additional Model Specifications | Loading Height: 710 mm / 28 in |
Lancer - 4500 TISS
[+] View Model Specifications| Depth | 52.76 in |
| Height | 94.88 in |
| Internal Depth | 33.46 in |
| Internal Height | 40.35 in |
| Width | 84.65 in |
| Internal Width | 33.46 in |
| Maximum Temperature | 95 °C |
| Power Requirements | 30 kw |
| Heat Loss | 9,000 Btu/2265 Kcal/h |
| Noise Level | 72 dB |
| Weight | 1763 lbs |
| Wash/Rinse Cycles | 4 pre-programmed, 36 user-defined |
| Water Consumption | 100 L / 26.4 gal - per fill |
| Drying System | Forced Air |
| Washer Capacity | Large Capacity |
| Additional Model Specifications | Loading Height: 710 mm / 28 in |
