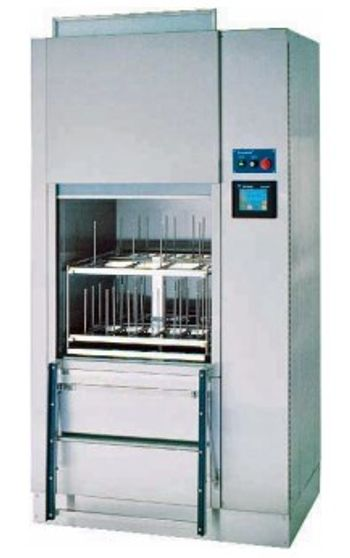

Scientek - SW4600 GWD Glassware Washer/Dryer
Manufactured by Scientek
The multiple 10 cycle touch selection gives the user the flexibility required for processing various loads.
Scientek’s Glassware Washer Dryer has been designed to combine greater wash processing capacity with same chamber drying. The multiple 10 cycle touch selection gives the user the flexibility required for processing various loads. The range of interchangeable headers and baskets will ensure correct coverage for all types of glassware and associated products to be suitably processed within a cycle time of 12-26 minutes.
Active Questions & AnswersAsk a Question
Recent Questions & Answers
Large Capacity Washers Service ProvidersView All (7)
Documents & Manuals
There are no Documents or Manuals available.
Features of SW4600 GWD Glassware Washer/Dryer
- Stainless steel type 304 construction
- Automatic full view guillotine type door
- Bottom quick connector for multiple wash header selection
- Allen Bradley Micro-Processor controller
- Ten preprogrammed cycle selections
- Colour touch screen interface with full event and diagnostic display
- Service / trouble shooting and PLC input / output testing
- Built-in Ethernet for online diagnostics
- Two chemical pumps (detergent and rinse aid)
- Steam sump heater
- Electro-pneumatic valve operation
- 6 - electric dryer elements
- 5 HP stainless steel pump
- Interior chamber illumination
- Digital temperature control and guarantee
General Specifications
| Depth | 32 in |
| Height | 78 in |
| Internal Depth | 26 in |
| Internal Height | 27 in |
| Width | 42 in |
| Internal Width | 26 in |
| Maximum Temperature | 180 °F |
| Recirculation Pump (flow rate) | Type 316 stainless steel pump C/W 3 HP MOTOR |
| Drying System | Convection |
| Washer Capacity | Large Capacity |
