TECHNOPHAR Equipment and Service - F-40

Manufactured by  TECHNOPHAR Equipment and Service
Follow this Equipment

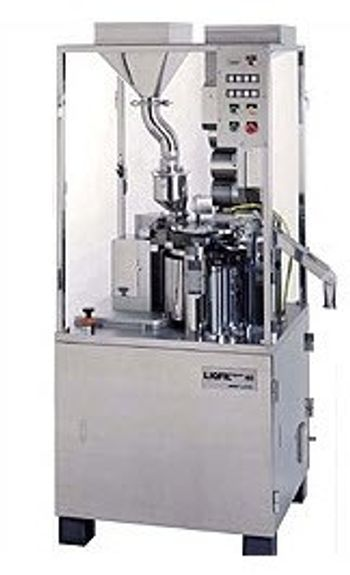

The LIQFIL Super 40 (F-40) is a fully automatic capsule filling machine with an output capacity of 40,000 capsules/hour.

The LIQFIL Super 40 (F-40) is a fully automatic capsule filling machine with an output capacity of 40,000 capsules/hour. It is capable of filling various types of dosage forms such as powders, pellets, beads, granules, minitabs, pastes, oils and liquids. When it comes to powder filling, compressed filling methods and vibration filling methods can be easily changed. In addition to its versatility in filling multiple dosage forms, the LIQFIL Super 40 (F-40) maintains highly accurate fill weights of finished products.
Active Questions & AnswersAsk a Question

Recent Questions & Answers

avatar placemark

Asked bykacheleboxes1216

Gold +27687063465 Red Silver Mercury in North West Rustenburg
avatar placemark

Asked bykacheleboxes1216

Gold +27687063465 Red Silver Mercury in Northern Cape Kimberley Upington
avatar placemark

Asked bykacheleboxes1216

Gold +27687063465 Red Silver Mercury in Dar es Salaam Dodoma Tanzania
View All Questions & Answers (5)

Capsule Fillers Service ProvidersView All (12)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of F-40
  • Various dosing units available.
  • Compact body.
  • Easy conversion.
  • Highly accurate filling.
  • Gentle capsule transportation.
  • 40,000 capsules/hour.        Rectification and transportation of capsules:     The capsule rotary rectification system available on this machine was developed by Qualicaps and has been patented in 10 countries. During capsule rectification, capsule defects such as "Deformation", "Scratch", and "Peel of imprinted characters" does not occur since no external pressures are applied to capsules.        Separation of capsules:    When the body of the capsule reaches the end of the body bushing, an O-ring acts as a shock absorber to avoid cracking of the capsule.        Feed and filling of drug substances:    A disk feeder cuts down and supplies fill without stirring, making it possible to supply fixed quantities without changing the particles distribution.        Adjustment of filled quantity:    Capsules are filled directly into the body using a mechanical vibration filling method. After pressing in equal density, the fixed quantity is pushed upward from the bottom, the weight is adjusted by scraping the surplus powder out, and the capsule is joined.        Joining:    The filled capsule body is lifted upward by the pusher and joined with the cap through the joining block. The joined capsules are lifted over the cap disc by pusher and then discharged.
    • General Specifications
    Depth 685 mm
    Height1845 mm
    Width 775 mm
    Power Requirements 200v
    Weight700 kg
    ProcessAutomatic
    Throughput40000 samples/hr
    Additional Specifications

    Vacuum Source:
    20 kPa (2000 mm H20), 4.5 m3 / min
    Compressed Air:
    0.5 MPa (5 kgf / cm2G), 300 L / min (normal)
    Production Output:
    40,000 capsules/hour
    Capsule Sizes:
    00, 0, 1, 2, 3, 4, 5
    Options:
    Automatic weight control system with length measuring device Capsule weight inspection machine
