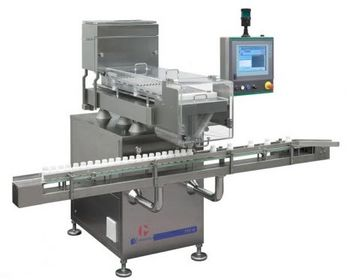

Marchesini Group - FTC12
Manufactured by Marchesini Group
Tablet counter and capping machine
Designed for the maximum flexibility in counting of tablets, pills, operculated capsules, transparent and opaque soft gel, the FTC 12 is the perfect solution to satisfy all counting needs of the pharmaceutical market.
All parts in contact with the product are removable in less than 5 minutes and are manufactured using AISI 316 L or FDA approved material.
The HMI is a Siemens industrial PC equipped with a wide, color touch screen; each function has been designed according to the GMP norms.
All parts in contact with the product are removable in less than 5 minutes and are manufactured using AISI 316 L or FDA approved material.
The HMI is a Siemens industrial PC equipped with a wide, color touch screen; each function has been designed according to the GMP norms.
Active Questions & AnswersAsk a Question
There are no current Discussions
Tablet/Capsule Counters Service ProvidersView All (12)
Documents & ManualsView All Documents
Features of FTC12
- Electronic counting & filling machine; * Designed to automatically count: tablets, coated tablets (dragées), hard & soft gelatine capsules, lozenges; * Counting head with plates at 12 channels mounted on 3 vibratory trays; * Photocells performing counting while tablets are falling down into the container; * Motorized adjustment of counting head's height; * S.S. AISI 304 structure; * Parts in contact with product made by SS AISI 316 or FDA approved material; * Vibrating block completely isolated from the frame; * Compliant to gmp rules; * Touch screen colour interface allowing user-friendly operations; * The machine is managed by a Siemens or Allen Bradley industrial pc allowing maximum reliability and conformity to the highest gmp requirements.
General Specifications
| Weight | 800 kg |
Additional Specifications
MECHANICAL SPEED:
60 bottles/minute
SIZE DATA:
O.D. of round bottle: from 20 to 80 mm
Total bottle height, without closure: from 55 to 185 mm
Tablets Diameter: from 5 to 20 mm
Capsules Size: from 000 to 5
