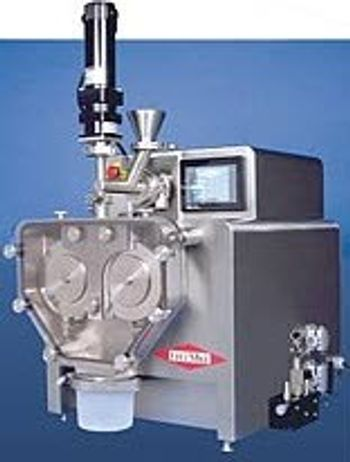

Fitzpatrick - IR 220 Chilsonator
Manufactured by Fitzpatrick
Process scalable, bench top Chilsonator IR 220 roll compactor for R&D use and also for small-scale production.
Maximum process flexibility is achieved with:
• Variable speed rolls and feed screws
• Variable roll pressure
• Roll gap measurement
• Multiple roll configurations available
• Variable speed rolls and feed screws
• Variable roll pressure
• Roll gap measurement
• Multiple roll configurations available
Active Questions & AnswersAsk a Question
There are no current Discussions
Roller Compactors Service ProvidersView All (12)
Documents & ManualsView All Documents
Features of IR 220 Chilsonator
- Process batches as small as 50 grams and as large as 20 kg/hr with minimal product loss * Cantilever style rolls allow for quick change out of a variety of roll designs, ease of dis-assembly, cleaning, and configuring for testing * Totally enclosed process area with transparent cover for viewing * Designed for bench top mounting or on a mobile base * Full automated controls provide convenient operation and monitoring of all process variables * Results scale directly to larger models–the rolls have the same diameter as the higher production IR520 so results are easily scaled * Vacuum deaeration capability is provided for process development flexibility
General Specifications
| Depth | 965 mm |
| Height | 1880 mm |
| Width | 1170 mm |
| Power Requirements | 200 |
