CapPlus Technologies - TP60
Manufactured by CapPlus Technologies

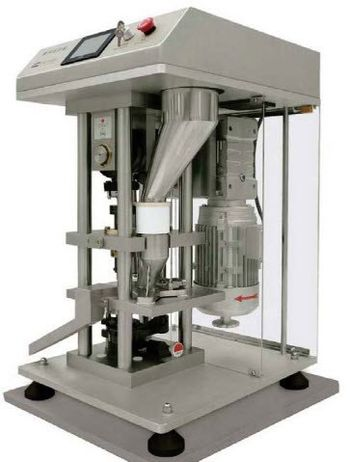

T60A & T60B Single Station Tablet Press
Models T60A and T60B are new advanced single punch tablet presses with new structure. They are continuous, automatic tableting machines designed for departments such as pharmacy, chemical industry, electrical industry, food and laboratory.
The machines are very easy to operate with a high utilization ratio. Both machines utilize higher pressures and adapt to more different diameters for tablet production.
The machines use single transmission system design which provide steadier operation at lower noise levels.
Machines have a safety protector installed and entirely enclosed structure to avoid cross dust polution which meets with GMP standards.
The machines are very easy to operate with a high utilization ratio. Both machines utilize higher pressures and adapt to more different diameters for tablet production.
The machines use single transmission system design which provide steadier operation at lower noise levels.
Machines have a safety protector installed and entirely enclosed structure to avoid cross dust polution which meets with GMP standards.
Active Questions & AnswersAsk a Question
There are no current Discussions
Tablet Presses Service ProvidersView All (12)
Documents & ManualsView All Documents
Features of TP60
General Specifications
There are no General Specifications available.
Additional Specifications
Production capacity:
60 tablets per minute
Maximum pressure:
A=5.6 Tons B=9 Tons
Maximum diameter of tablet:
A=25mm B=30mm
Maximum filling depth:
A=20mm B=22mm
Maximum tablet thickness:
A=0.5-8mm, B=0.5-10mm
Machine weight:
A=407 lbs. B=584 lbs.
Machine dimensions:
19.5” x 23” x 32.5”
Power:
A=1P,220V1.5Kw, B=3P, 308V/220V 3Kw
