Tecan - AC Extraction Plate
No Documents
Sample Preparation for LC-MS Made Easy

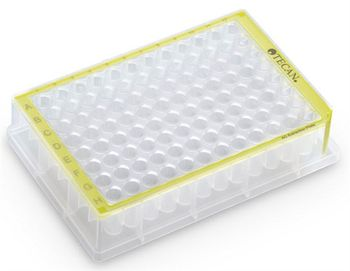

The AC Extraction Plate is an ANSI/SLAS (formerly known as ANSI/SBS) standard, 96well, deep-well microplate, with each well having a proprietary TICE™ coating. The product is supplied with:
AC Extraction Plate for 96 tests in a protective aluminum inner packaging
Certificate of Analysis
Instructions for Use
Active Questions & AnswersAsk a Question
There are no current Discussions
Liquid Handling Service ProvidersView All (10)
Documents & Manuals
There are no Documents or Manuals available.
Features of AC Extraction Plate
General Specifications
| Depth | 85.5 mm |
| Height | 27.1 mm |
| Width | 127.8 mm |
Additional Specifications
AC Extraction Plate:
96-wells with TICE coating, 1 plate per unit
Number of tests:
96 tests
Max. liquid volume:
500 Μl
Chemical resistance:
Known compatible solvents: Methanol, Acetonitrile, Ethanol, Isopropanol, 2% Acetic Acid, 2% Formic Acid, 2% Ammonium Hydroxide, Ammonium Acetate.
Known incompatible solvents: Aromatic hydrocarbons, Esters, Ketones and concentrated Acids.
Operational conditions:
Standard laboratory range which is 15°C to 32°C (59°F to 90°F). The relative operating humidity must be between 30% to 80% (non-condensing).
Storage:
15°C to 32°C (59°F to 90°F), must be stored dry and protected against direct solar radiation.
Tested pH range:
Aqueous solutions with a pH range of 2 to 10.
Expiration date:
The AC Extraction Plate can be used for up to 6 months from date of manufacture when properly stored (15°C to 32°C), but only until the expiration date as indicated on the primary packaging label.
