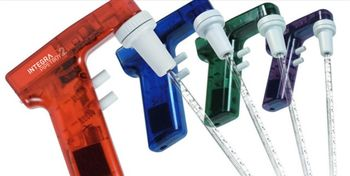

Integra Biosciences - Pipetboy acu 2
Manufactured by Integra Biosciences
Lighter, Faster - The most popular pipettor just got better.
The second generation of PIPETBOY acu is equipped with the latest technology providing an increased pipetting speed and a significant weight reduction of the instrument. These two features help you to cut your work time and offer you an improved ergonomic pipetting experience. Besides these changes the main benefits of PIPETBOY acu were preserved: the unmatched pipetting precision, the colorful look and the weight balance.
Active Questions & AnswersAsk a Question
There are no current Discussions
Pipettes Service ProvidersView All (10)
Documents & ManualsView All Documents
Features of Pipetboy acu 2
Battery status
The LED provides clear information about the charging status, simply by switching between red and green.
Safe
Autoclavable nose piece and easy to replace hydrophobic filter for reliable protection. Continuous preset of the pipetting speed via the thumb wheel.
Precise
Sensitive control of the liquid by applying various finger pressure on triggers, from fine to fast pipetting.
Ergonomics
Lightweight, well-balanced and designed to sit comfortably in the hand for effortless pipetting.
Versatile
Ideal for use with all commercially available serological pipettes, from 1 to 100 ml.
Colored
6 models to choose from according to your applications or your personal preferences
Lighter
Faster with unmatched pipetting control
Longer operating time
Quality you can rely on
General Specifications
| Power Requirements | 110 |
| Weight | 195 g |
| Channel(s) | 1 |
| Dispensing Volume Range | 1 to 100 ml |
| Dispensing Volume Range** | 100 |
| Pipette Type | Pipette Controller |
| Pipette Volume Type | Variable |
Additional Specifications
Maximum pipetting speed:
13.5 ml/s (with a 50 ml pipette)
Gravity dispense:
Slight pressure on dispense button
Operating conditions:
5–40°C, max. 80% RH
Pipette compatibility:
Glass and plastic pipettes with volume from 1 to 100 ml
[u]Power requirements [/u]
Input:
100-240 VAC, 50/60 Hz
Output:
17 VDC ±10 %/180 mA ±10 %
Filter protection:
0.45 Μm (included) or
0.2 Μm (order separately)
Rechargeable battery:
Lithium Polymer, 7-10 V, min. 550 mAh
