New Era Pump Systems - NE-4000

Manufactured by  New Era Pump Systems
Follow this Equipment

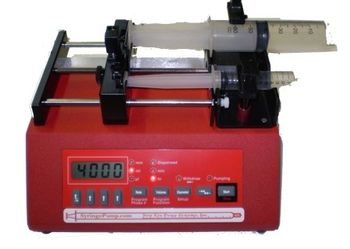

NE-4000 Double Syringe Pump

Using 2 NE-4000 pumps attached with a cable, one pump will infuse while the other pump refills or have simultaneous infusion.

  1. Holds 2 Syringes up to 60 cc* each, can be different sizes
  2. Infusion rates from 1.459 µL/hr ( 1 cc syringe) to 7635 ml/hr (60 cc syringe)
  3. Easy-to-use keypad interface
  4. Space Saving Chassis: Foot print size of only 5 3/4" x 8 3/4"
  5. Won't take up unnecessary space on your laboratory or production bench
  6. Includes all the advanced functions and programming features of the NE-1000 family

Source: New Era Pump Systems

*** Not for clinical use on humans ***
Active Questions & AnswersAsk a Question

There are no current Discussions

Lab Pumps Service ProvidersView All (3)

Request Support
Documents & Manuals

There are no Documents or Manuals available.

Features of NE-4000
  • Fully programmable; automation capable
  • Operates stand-alone or from a computer
  • Infusion and withdrawal
  • Set a single pumping rate and/or dispensing volume
  • Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
  • Network, control, and monitor up to 100 pumps with one computer
  • Worldwide power supplies available
  • Motor stall detection
  • Dispensing accuracy of +/-1%
  • Unlimited lifetime technical support
  • Two year warranty
General Specifications

There are no General Specifications available.

Additional Specifications

Maximum syringe size:
Although a maximum of a 60 cc syringe is specified, the pump can hold up to a 140 cc syringe but can only open up to about 120 cc lengthwise

High pressure notes:
The NE-4000 produces about 15 lbs(7.5 lbs/syringe) of linear force at top speed and about 100 lbs(50 lbs/syringe) at slow speeds. 10 ml/hr is an example of slow speed. The pressure that can be generated is relative to the syringe size. On a 60 ml syringe, this would roughly produce about 30 psi
