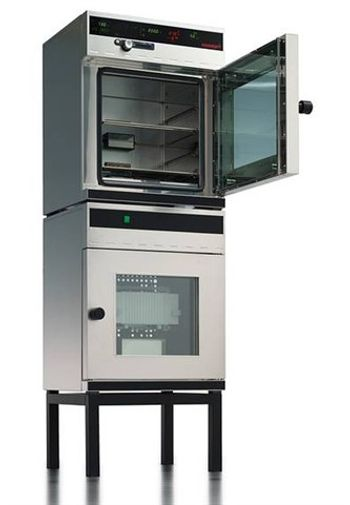

Wisconsin Oven Distributors - Memmert Vacuum Ovens
Manufactured by Wisconsin Oven Distributors
No Documents
Drying, Burning-in, Ageing, Curing, Degassing, Conditioning, Oxygen-free Storing
Memmert vacuum ovens show their full potential with short heating up times, high precision temperature control and turbo drying. At the same time, heat and oxygen sensible materials are treated with incomparable care. Memmert is the only manufacturer worldwide that offers digital pressure control. As addition to the Vacuum oven, Memmert offers a special controllable pump for installation in a lower chamber, the pump module, installed on the outside of the vacuum oven.
Active Questions & AnswersAsk a Question
There are no current Discussions
Lab Ovens Service ProvidersView All (15)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
Wisconsin Oven Distributors - PMP200
[+] View Model Specifications| Depth | 400 mm |
| Temperature Uniformity | 2 K |
| Height | 600 mm |
| Internal Depth | 250 mm |
| Temperature Range | 20 to 200 °C |
| Internal Height | 305 mm |
| Width | 550 mm |
| Internal Width | 385 mm |
| Power Requirements | 230 V |
| Peak Power | 1200 W |
| Chamber Volume | 29 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Additional Model Specifications |
Wisconsin Oven Distributors - PMP400
[+] View Model Specifications| Depth | 480 mm |
| Temperature Uniformity | 2 K |
| Height | 680 mm |
| Internal Depth | 330 mm |
| Temperature Range | 20 to 200 °C |
| Internal Height | 385 mm |
| Width | 550 mm |
| Internal Width | 385 mm |
| Power Requirements | 230 V |
| Peak Power | 2000 W |
| Chamber Volume | 49 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Number of Shelves | 4 |
| Construction | Stainless steel |
| Additional Model Specifications |
Wisconsin Oven Distributors - PMP500
[+] View Model Specifications| Depth | 550 mm |
| Temperature Uniformity | 2 K |
| Height | 760 mm |
| Internal Depth | 400 mm |
| Temperature Range | 20 to 200 °C |
| Internal Height | 465 mm |
| Width | 710 mm |
| Internal Width | 545 mm |
| Power Requirements | 230 V |
| Peak Power | 2400 W |
| Chamber Volume | 101 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Number of Shelves | 4 |
| Construction | Stainless steel |
| Additional Model Specifications |
Wisconsin Oven Distributors - VO200
[+] View Model Specifications| Depth | 400 mm |
| Temperature Uniformity | 3 K |
| Height | 600 mm |
| Internal Depth | 250 mm |
| Temperature Range | 20 to 200 °C |
| Internal Height | 305 mm |
| Width | 550 mm |
| Internal Width | 385 mm |
| Power Requirements | 230 V |
| Peak Power | 1200 W |
| Chamber Volume | 29 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Weight | 58 kg |
| Number of Shelves | 3 |
| Construction | Stainless steel |
| Additional Model Specifications |
Wisconsin Oven Distributors - VO400
[+] View Model Specifications| Depth | 480 mm |
| Temperature Uniformity | 2 K |
| Height | 680 mm |
| Internal Depth | 330 mm |
| Temperature Range | 20 to 200 K |
| Internal Height | 385 mm |
| Width | 550 mm |
| Internal Width | 385 mm |
| Power Requirements | 230 V |
| Peak Power | 2000 W |
| Chamber Volume | 49 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Weight | 82 kg |
| Number of Shelves | 4 |
| Construction | Stainless steel |
| Additional Model Specifications |
Wisconsin Oven Distributors - VO500
[+] View Model Specifications| Depth | 550 mm |
| Temperature Uniformity | 0.3 K |
| Height | 760 mm |
| Internal Depth | 400 mm |
| Temperature Range | 20 to 200 °C |
| Internal Height | 465 mm |
| Width | 710 mm |
| Internal Width | 545 mm |
| Power Requirements | 230 V |
| Peak Power | 2400 W |
| Chamber Volume | 101 L |
| Oven Orientation | Bench / Cabinet |
| Oven Type | Vacuum |
| Weight | 120 kg |
| Number of Shelves | 4 |
| Construction | Stainless steel |
| Additional Model Specifications |
