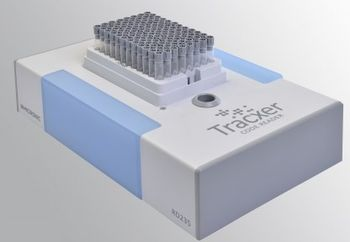

Micronic - Tracxer Code Reader RD235 CRYO
Manufactured by Micronic
The Tracxer Code Reader RD235 CRYO offers a high-end solution for scanning whole racks with 2D Data-Matrix or TraXis...
The Tracxer Code Reader RD235 CRYO offers a high-end solution for scanning whole racks with 2D Data-Matrix or TraXis coded tubes. Featuring a CCD image sensor the reader provides unmatched depth of field scanning, ensuring the highest accuracy 2D code reading.
The Tracxer Code Reader RD235 CRYO features an anti-frost system which minimizes condensation on the scanner plate. This way, tube codes from even frozen samples can be read, thereby improving produc-tivity and preserving the integrity of your samples.
Due to its compact size - the Tracxer Code Reader RD235 is easily integrated into robotic liquid handling or storage systems. The reader is fully compatible with all SBS standard storage racks, which enables the reading of 12-, 24-, 48-, 96-, and 384-well formats
The Tracxer Code Reader RD235 CRYO features an anti-frost system which minimizes condensation on the scanner plate. This way, tube codes from even frozen samples can be read, thereby improving produc-tivity and preserving the integrity of your samples.
Due to its compact size - the Tracxer Code Reader RD235 is easily integrated into robotic liquid handling or storage systems. The reader is fully compatible with all SBS standard storage racks, which enables the reading of 12-, 24-, 48-, 96-, and 384-well formats
Active Questions & AnswersAsk a Question
There are no current Discussions
Robotics Service ProvidersView All (2)
Documents & ManualsView All Documents
Features of Tracxer Code Reader RD235 CRYO
- High-end bench top solution * CCD image sensor for unmatched high resolution image quality * Anti-frost system which minimizes condensation on the scanner plate * Reads whole racks in 12-, 24-, 48-, 96 and 384-well format in 7 sec. * Reads a single 24-, 48- or 96-well format tube in less than 2 seconds * Reads 2D Data-Matrix and TraXis coded tubes * Software Developer's ActiveX Toolkit included for easy LIMS integration * No tube, no code software feature * Compatible with most brands of 2D Data-Matrix coded tubes * Optional: Integrated 1D Rack Barcode Reader BC235 for reading 1D rack barcodes
General Specifications
There are no General Specifications available.
