Arizona Instrument - Jerome J405
No Documents

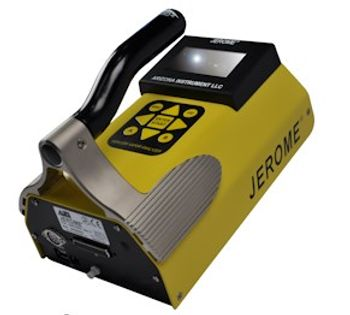

Gold Film Mercury Vapor Analyzer
The J405 utilizes the industry-proven, inherently stable and reliable gold film sensor technology and simple, one-button operation. The ergonomically-designed handle, lighter exterior case and significantly lower detection capabilities (0.5 Μg/m3) make it a portable, easy to use, low-level mercury detection instrument.
Active Questions & AnswersAsk a Question
There are no current Discussions
Elemental Analyzers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of Jerome J405
- Meets EPA & ATSDR Action Levels
- Battery Powered Sensor Regeneration
- 24 Hour Battery Life
- On-board Data Logging (20,000 data points) (communications option)
- Auto Time/Date Stamp
- USB data output (communications option)
- SCADA Interface Capabilities via 4-20ma
- Functional Test Kit (FTK) verifies instrument functions correctly between recommended annual factory calibrations
General Specifications
| Depth | 11 in |
| Height | 6.5 in |
| Width | 6 in |
| Weight | 5.3 lbs |
Additional Specifications
Resolution:
0.01 µg/m3 (0.001 mg/m3)
Detection Range:
0.5 µg/m3 - 999 µg/m3 (0.001 mg/m3 to 0.999 mg/m3)
Data Storage Capacity:
20,000 samples
Operating Environment:
0 - 45°C non-condensing, non-explosive
Accuracy:
1.0 µg/m3, ±10%
25 µg/m3, ±5%
100 µg/m3, ±5%
Typical Response Time:
SURVEY MODE: 2 seconds
SAMPLE MODE: 16 seconds
Flow Rate:
750 ± 50 cc/min (0.75 ± 0.05 liters/min)
Power Requirements:
12 VDC for the instrument
(provided by the internal battery, AC power supply/charger, external battery pack or car accessory cable)
100-240VAC, 47-63Hz, 3.2A for the AC power supply/charger
Internal Battery Pack:
Rechargeable nickel metal hydride (NiMH)
