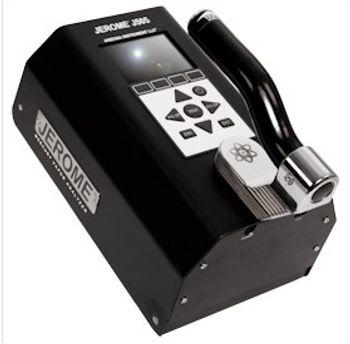

Arizona Instrument - Jerome J505 Mercury Vapor Analyzer
Manufactured by Arizona Instrument
No Documents
Atomic Fluorescence Spectroscopy Mercury Vapor Analyzer
The NEW! Jerome® J505 Mercury Vapor Analyzer is a portable fluorescence spectroscopy analyzer, which allows the detection cell to be simpler, smaller, lighter weight and more durable than competing spectroscopy instruments. The highly efficient optical cell requires less flow to purge the system, allowing the J505 to run at a lower flow rate minimizing sample dilution as found in competing spectroscopy instruments.
Active Questions & AnswersAsk a Question
There are no current Discussions
Elemental Analyzers Service ProvidersView All (6)
Documents & Manuals
There are no Documents or Manuals available.
Features of Jerome J505 Mercury Vapor Analyzer
- Meets EPA & ATSDR Cleanup Levels
- Flexible Data Handling
- Choice of Two Independently Adjustable High Limit Alarms
- Programmable Auto Sampling Mode
- Choice of 3 Units of Measurement (nanograms, micrograms, milligrams)
- Color Display with Easy to Use Menu System
- Battery Operation for 10+ Hours | Battery Charges in 3 Hours or Less
- A USB Keyboard can be used for Easy Entry of Locations (optional)
- Integrated Data Logging Saves all Test Results (excludes search mode)
General Specifications
| Depth | 12 in |
| Height | 6.2 in |
| Width | 8.4 in |
| Power Requirements | 100-240VAC |
| Weight | 6.5 lbs |
Additional Specifications
Resolution: 0.01 µg/m3 (0.001 mg/m3)
Detection Range: 0.05 to 500 µg/m3
Data Storage Capacity: Up to 10,000 test results, 100 test locations
Operating Environment: Up to 10,000 test results, 100 test locations
Accuracy:
- 0.3 µg/m3, ±15%
- 1 µg/m3, ±10%
- 25 µg/m3, ±10%
- 100 µg/m3, ±10%
Typical Response Time:
- Search: 8 sec. first reading; continuous 1 sec. updates
- Quick: 16 sec.
- Standard: 28 sec.
Flow Rate: 1 liter/minute
