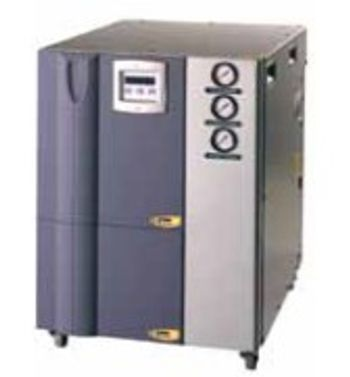

Parker Domnick Hunter - LCMS Series
Nitrogen Generators for LC/MS applications - with optional economy mode
The Parker Domnick hunter LCMS nitrogen gas generators employ robust, field-proven technology to meet the drying, sheath and nebulization gas requirements of today’s latest LC/MS instrumentation. Five models operate at flow rates from 15 L/min to 50 L/min.
The LCMS generators provide a continuous stream of high purity nitrogen from a single 'plug & play' unit. Models are available with and without an integral oil-free compressor, are extremely quiet in operation and are fully approved for use by major instrumentation manufacturers.
Innovative design and technology facilitate maximum instrument uptime, attractive return on investment and proven analytical performance, eliminating the need for other modes of supply
Active Questions & AnswersAsk a Question
There are no current Discussions
Nitrogen Service ProvidersView All (8)
Documents & Manuals
There are no Documents or Manuals available.
Features
There are no Features available.
General Specifications
There are no General Specifications available.
Series Modals
Parker Domnick Hunter - LCMS 30
[+] View Model SpecificationsDepth | 32.5 in |
Flow Rate | 30 L/min |
Height | 27.8 in |
Temperature Range | 5 to 40 °C |
Purity | 99 % |
Width | 20.1 in |
Weight | 135 kg |
Gas Generated | Nitrogen |
Additional Model Specifications |
Parker Domnick Hunter - LCMS 40
[+] View Model SpecificationsDepth | 22.9 in |
Flow Rate | 40 L/min |
Height | 27.8 in |
Temperature Range | 5 to 40 °C |
Purity | 99 % |
Width | 20.1 in |
Weight | 135 kg |
Gas Generated | Nitrogen |
Additional Model Specifications |
Parker Domnick Hunter - LCMS 50
[+] View Model SpecificationsDepth | 22.9 in |
Flow Rate | 50 L/min |
Height | 27.8 in |
Maximum Pressure | 7 bar |
Temperature Range | 5 to 40 °C |
Purity | 99 % |
Width | 20.1 in |
Weight | 135 kg |
Gas Generated | Nitrogen |
Additional Model Specifications |
Parker Domnick Hunter - LCMS15
[+] View Model SpecificationsDepth | 32.5 in |
Flow Rate | 15 L/min |
Height | 27.8 in |
Temperature Range | 5 to 40 °C |
Purity | 99 % |
Width | 20.1 in |
Weight | 89 kg |
Gas Generated | Nitrogen |
Additional Model Specifications |
Parker Domnick Hunter - LCMS20
[+] View Model SpecificationsDepth | 22 in |
Flow Rate | 20 L/min |
Height | 27.8 in |
Temperature Range | 5 to 40 °C |
Purity | 99 % |
Width | 20.1 in |
Weight | 89 kg |
Gas Generated | Nitrogen |
Additional Model Specifications |
