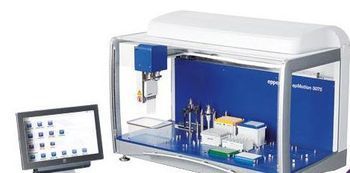

EPPENDORF - epMotion 5075l systems
Manufactured by EPPENDORF
No Documents
The epMotion 5075l is the perfect solution for more complex pipetting tasks. It offers the same precision and accuracy...
The epMotion 5075l is the perfect solution for more complex pipetting tasks. It offers the same precision and accuracy as the epMotion 5070, making it the ideal tool for demanding applications such as the immunoassay set-up or routine applications with several plates. The 15 positions, option of automatically changing pipetting tools, and the plate gripper make the epMotion 5075l one of the most flexible automated liquid handling systems.
Active Questions & AnswersAsk a Question
There are no current Discussions
Liquid Handling Service ProvidersView All (10)
Documents & Manuals
There are no Documents or Manuals available.
Features of epMotion 5075l systems
- 15 ANSI/SBS worktable positions * CleanCap option—UV lamp & HEPA filter for decontamination and clean air conditions * Maximum pipetting accuracy from 1 to 1,000 ΜL * Automatic exchange of tools (gripper, 1-channel & 8-channel) * Optical sensor1 for detecting liquids, labware, tips * Compatible with tubes (0.2 mL to 50 mL) and microplates with up to 384 wells * MultiCon PC controller to run preinstalled LH assistant or epBlue software by touch or mouse and keyboard * Optional software extensions for handling samples with barcodes or for integration to LIMS & ELN * Optional software extensions for integration to regulated process environments (GLP, GMP, 21 CFR) L 3 thermal module options
General Specifications
| Depth | 67 cm |
| Height | 67 cm |
| Width | 107 cm |
| Power Requirements | 110-130 V, 50/60 Hz |
| Weight | 187 lbs |
Additional Specifications
Accuracy/Imprecision at 1 µL
±15%/?5%
Accuracy/Imprecision at 50 µL
±1.2%/?0.4%
Accuracy/Imprecision at 1,000 µL
±0.7%/?0.15%
Automated tool exchange
Yes
